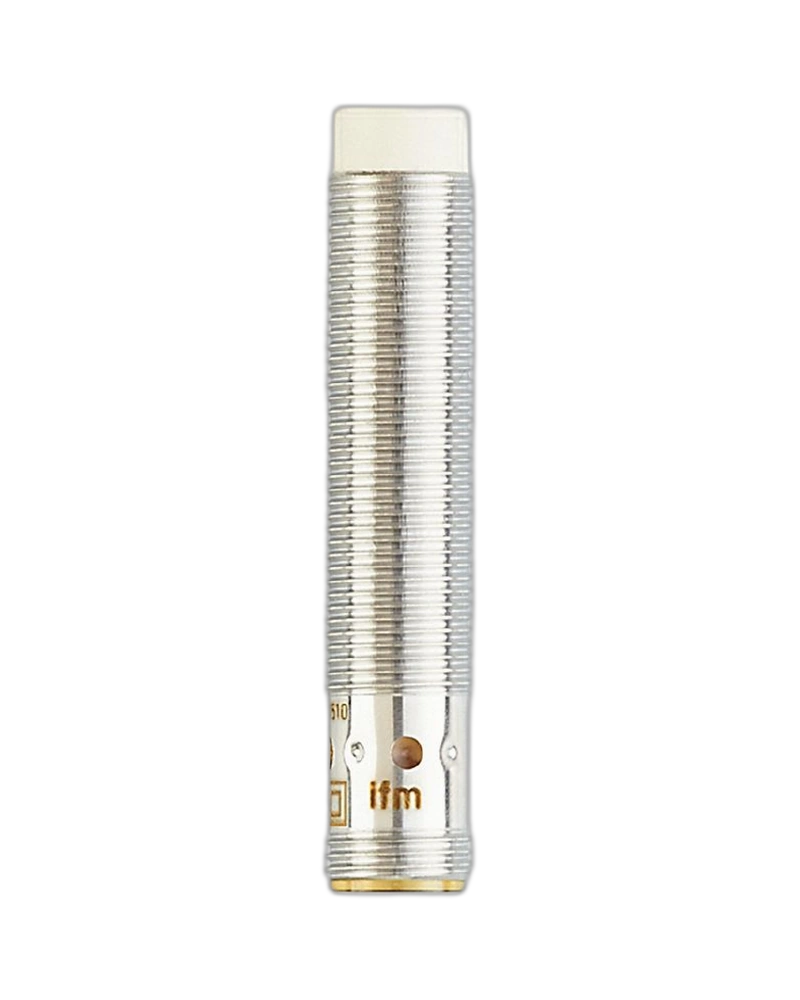

The IFM IFK3004-BPKG/V4A/US-104 Inductive Sensor provides reliable 4 mm metal detection with PNP normally open output, stainless-steel construction, and 1400 Hz switching frequency for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF5813 Inductive Sensor is a reliable solution for Industrial Sensors applications where accurate and repeatable metal detection is required. It is designed for position detection, object monitoring, and automated machine control.
The sensor provides a 4 mm sensing range with non-flush mounting and a compact M12 threaded design. Its PNP normally open output enables easy integration into PLC-based control systems and Industrial Automation Systems in UAE.
A robust stainless-steel housing provides durability for demanding industrial environments, while the M12 connector with gold-plated contacts supports dependable electrical connection.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operating voltage
• 1400 Hz switching frequency
• Stainless-steel 316L housing
• Non-flush mountable
• M12 x 1 threaded design
• M12 A-coded connector
• Gold-plated contacts
• IP67 protection
• Yellow LED switching indication
Ideal for factory automation, machine monitoring, conveyor systems, assembly equipment, packaging machinery, position detection, object counting, and industrial control systems.
| Specification | Details |
|---|---|
| Product Model | IFK3004-BPKG/V4A/US-104 |
| Part Number | IF5813 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 200 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.24 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Housing Material | Stainless Steel 316L |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | 4 × Yellow LED |
| Weight | 26.8 g |
