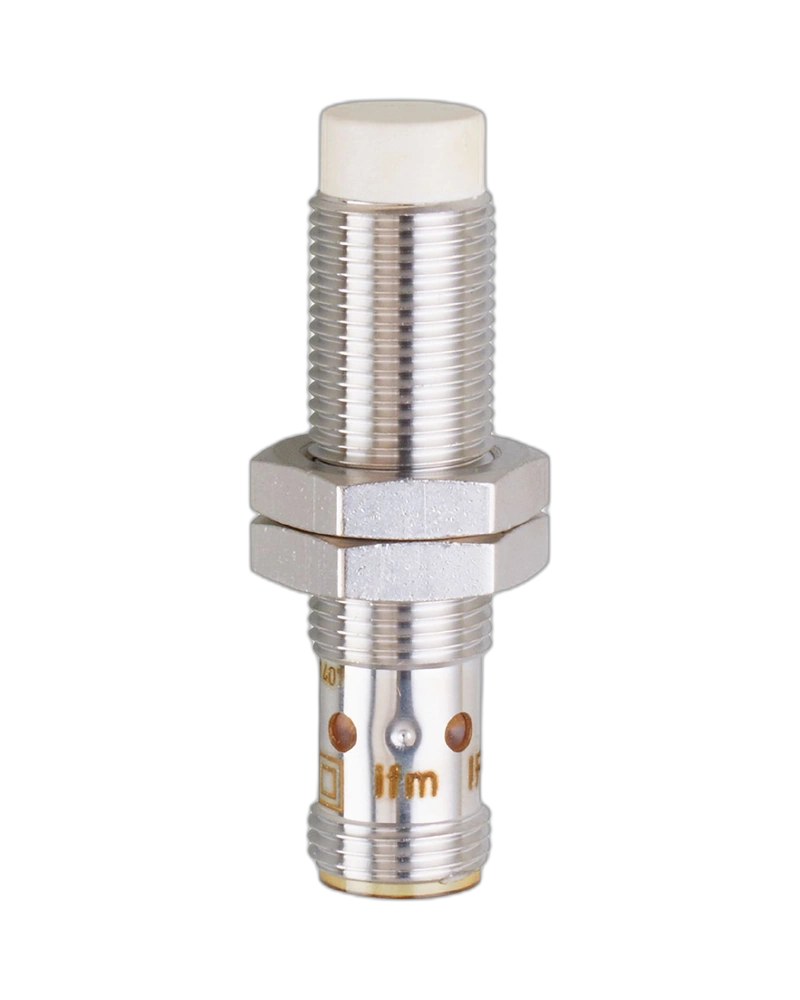

The IFM IFK3007-BPKG/US-104 Inductive Sensor provides an extended 7 mm sensing range with PNP normally open output and 700 Hz switching frequency, making it suitable for reliable industrial object detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF5811 Inductive Sensor is designed for reliable metal detection in Industrial Automation UAE applications requiring an increased sensing distance. It supports accurate position and object detection in automated machines, conveyors, and production equipment.
With an extended 7 mm sensing range, the sensor can detect metallic targets from a greater distance compared with standard short-range proximity sensors. Its PNP normally open output allows easy connection to PLCs and industrial automation controllers.
The sensor operates from 10–30 V DC and includes short-circuit and overload protection. Gold-plated contacts and a robust threaded M12 housing provide dependable performance for industrial applications.
• 7 mm sensing range
• Increased sensing range
• PNP normally open output
• 10–30 V DC operation
• 700 Hz switching frequency
• M12 x 1 threaded housing
• Non-flush mounting
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
• Yellow LED switching indication
Ideal for factory automation, conveyor systems, material handling, machine tools, assembly systems, position monitoring, metal detection, and industrial automation equipment.
| Specification | Details |
|---|---|
| Product Model | IFK3007-BPKG/US-104 |
| Part Number | IF5811 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 7 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 200 mA |
| Switching Frequency | 700 Hz |
| Operating Distance | 0–5.67 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 60 mm |
| Special Feature | Increased sensing range |
| Contacts | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Yellow LED |
