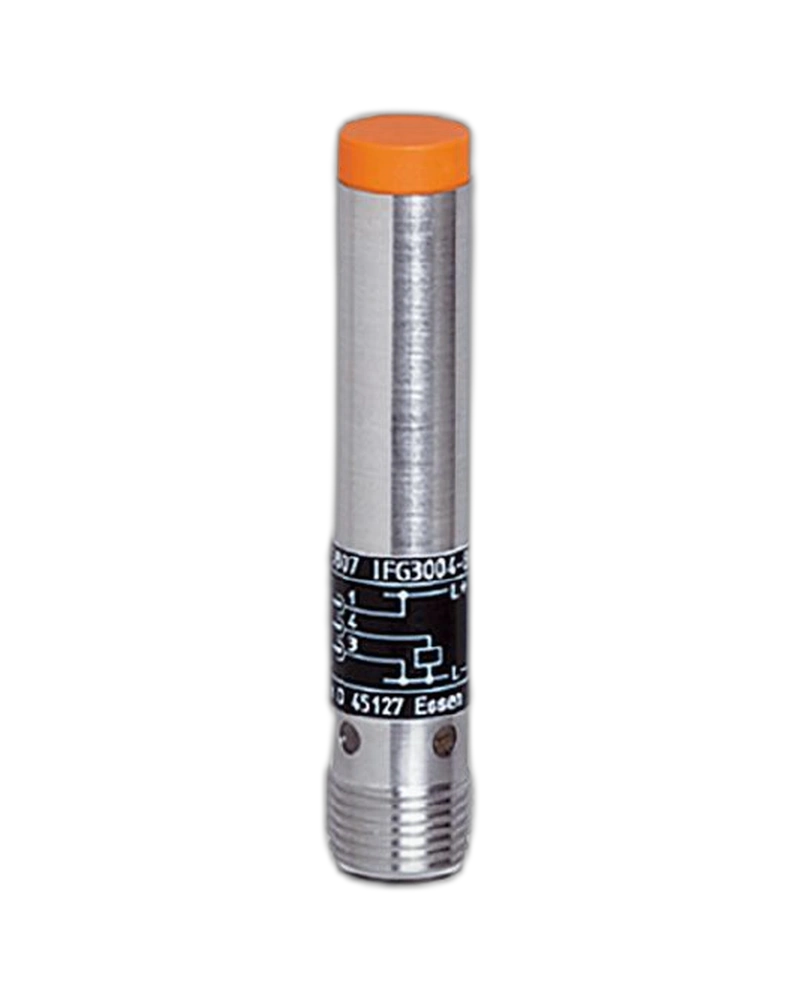

The IFM IFG3004-BPKG/V4A/US-104-DPS Inductive Sensor offers dependable 4 mm metal detection, PNP normally open output, and 1400 Hz switching frequency in a robust stainless-steel housing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF5807 Inductive Sensor is designed for reliable detection in Industrial Automation UAE and factory automation environments. It helps machines detect the presence and position of metallic objects without physical contact.
The sensor features a 4 mm sensing range and non-flush mounting configuration, providing dependable detection for automated machinery, conveyors, and production systems. Its PNP normally open output enables simple integration with PLCs and industrial control systems.
With a 10–36 V DC operating range and switching frequency up to 1400 Hz, the sensor supports fast automated operations. The stainless-steel housing and IP67 protection provide reliable performance in industrial environments.
• 4 mm sensing range
• PNP normally open output
• 10–36 V DC operation
• 1400 Hz switching frequency
• Stainless-steel housing
• Non-flush mounting
• Ø11 mm cylindrical design
• M12 connector
• Gold-plated contacts
• IP67 protection
• Short-circuit and overload protection
Suitable for factory automation, conveyor systems, assembly machinery, machine tools, packaging lines, position detection, metal detection, and industrial production equipment.
| Specification | Details |
|---|---|
| Product Model | IFG3004-BPKG/V4A/US-104-DPS |
| Part Number | IF5807 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 250 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush |
| Dimensions | Ø11 mm / L = 60 mm |
| Housing Material | Stainless Steel 316Ti / PC |
| Connection | M12 A-coded connector |
| Contacts | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | 4 × 90° Yellow LED |
| Weight | 15.4 g |
