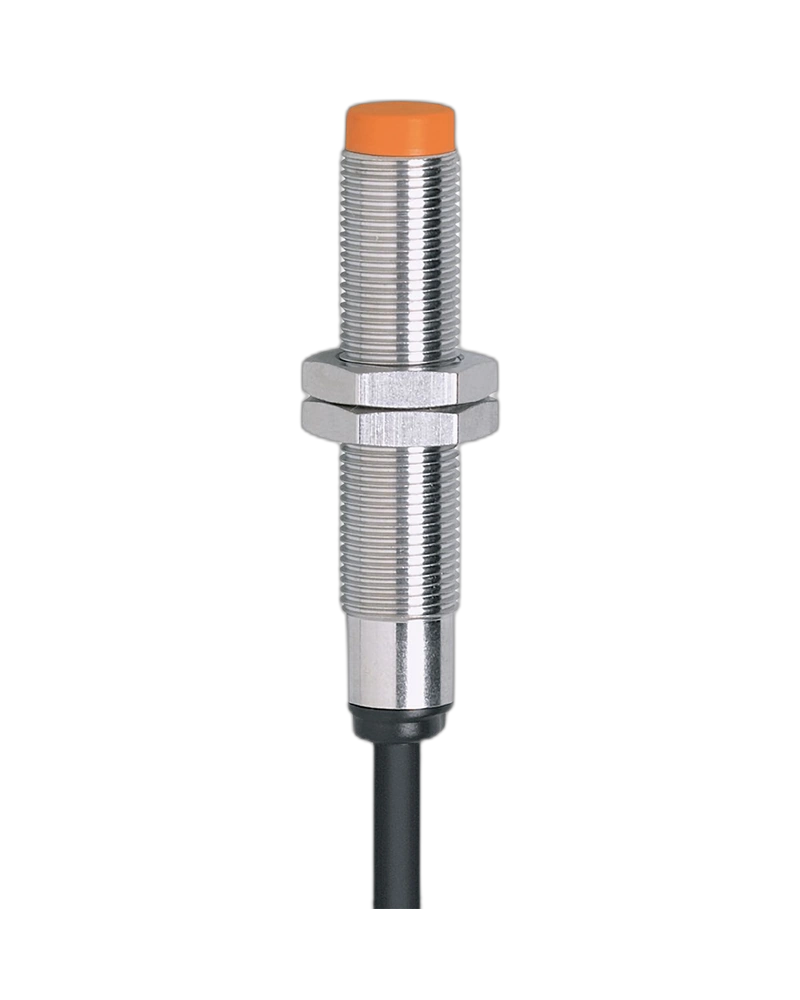

The IFM IFK2004-ARKG/PH Inductive Sensor provides reliable 4 mm non-contact metal detection with PNP/NPN output, a 1400 Hz switching frequency, and a 2 m PUR cable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable sensing is an important part of Industrial Automation Systems in UAE, where machines require accurate detection of metallic objects during automated processes. The IFM IF5804 IFK2004-ARKG/PH Inductive Sensor is designed for dependable object and position detection in industrial machinery.
Its 4 mm sensing range and non-flush mounting configuration make it suitable for detecting metal components on conveyors, machines, and production systems. The PNP/NPN electrical design provides flexibility when connecting the sensor to different control architectures.
Operating from a wide 10–55 V DC supply range, the sensor supports a switching frequency of up to 1400 Hz. Its 2 m PUR cable and IP67 protection make it suitable for reliable industrial installation.
• 4 mm sensing range
• PNP/NPN electrical design
• Normally open output
• 10–55 V DC operating voltage
• 1400 Hz switching frequency
• Non-flush mounting
• M12 x 1 threaded housing
• 2 m PUR cable
• IP67 protection
• Short-circuit and overload protection
• Yellow LED switching indication
Ideal for factory automation, conveyors, assembly machines, packaging equipment, material handling systems, machine monitoring, and metal object detection.
| Specification | Details |
|---|---|
| Product Model | IFK2004-ARKG/PH |
| Part Number | IF5804 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–55 V DC |
| Permanent Current Rating | 400 mA |
| Switching Frequency | 1400 Hz |
| Operating Distance | 0–3.25 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 62 mm |
| Cable Length | 2 m |
| Cable Material | PUR |
| Housing Material | PBT / brass white-bronze coated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | Yellow LED |
