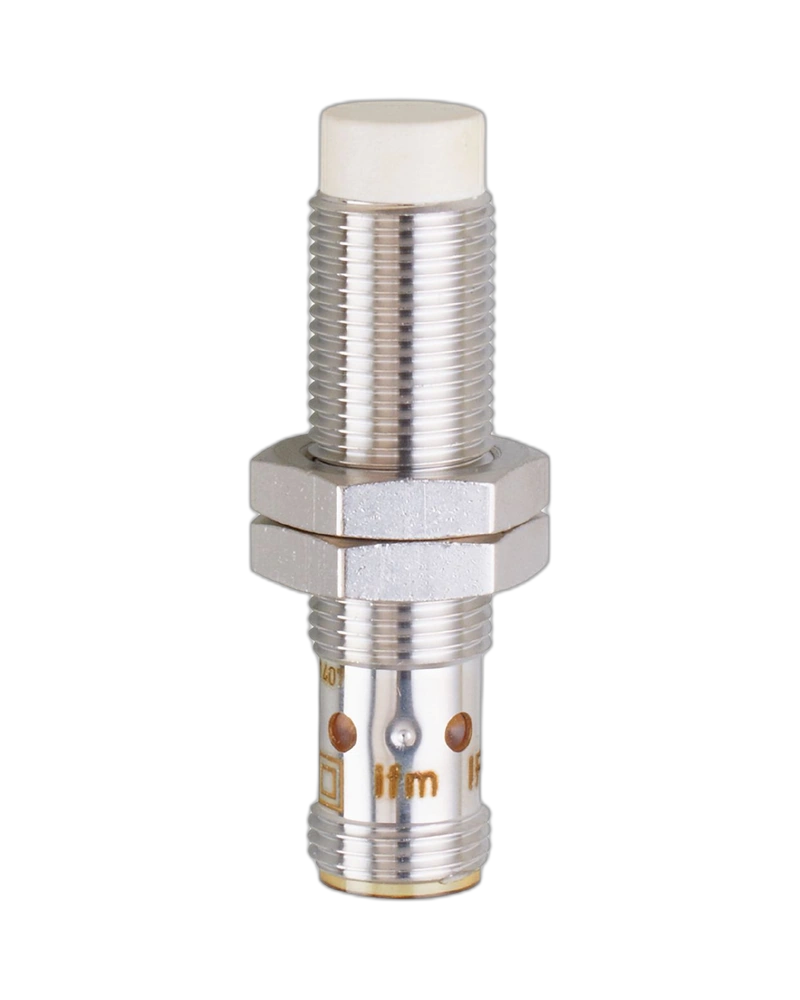

The IFM IFB3004-BPKG/V4A/US-104 Inductive Sensor delivers reliable 4 mm metal detection with a PNP normally open output, stainless-steel housing, and 1400 Hz switching frequency for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF5796 Inductive Sensor is designed for dependable object and position detection in Industrial Automation UAE applications. It provides accurate non-contact detection of metallic components used in automated machinery, production lines, conveyors, and industrial equipment.
Featuring a 4 mm sensing range, the sensor supports reliable detection while its robust stainless-steel construction makes it suitable for demanding industrial environments. The PNP normally open output allows straightforward connection to PLCs and automation controllers.
The sensor operates from 10–30 V DC and provides a high switching frequency of up to 1400 Hz, helping maintain fast detection in high-speed production processes. Gold-plated contacts and IP67 protection provide additional reliability for industrial installations.
• 4 mm sensing range
• PNP normally open output
• 10–30 V DC operation
• 1400 Hz switching frequency
• Stainless-steel housing
• Non-flush mountable
• M12 x 1 threaded design
• Gold-plated contacts
• IP67 protection
• Overload protection
• Wide operating temperature range
Suitable for factory automation, machine tools, conveyor systems, assembly equipment, packaging machinery, material handling, position detection, and industrial control systems.
| Specification | Details |
|---|---|
| Product Model | IFB3004-BPKG/V4A/US-104 |
| Part Number | IF5796 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Permanent Current Rating | 250 mA |
| Switching Frequency | 1400 Hz |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Housing Material | Stainless Steel V4A |
| Contacts | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Status Indicator | LED switching indication |
| Special Feature | Robust stainless-steel housing |
