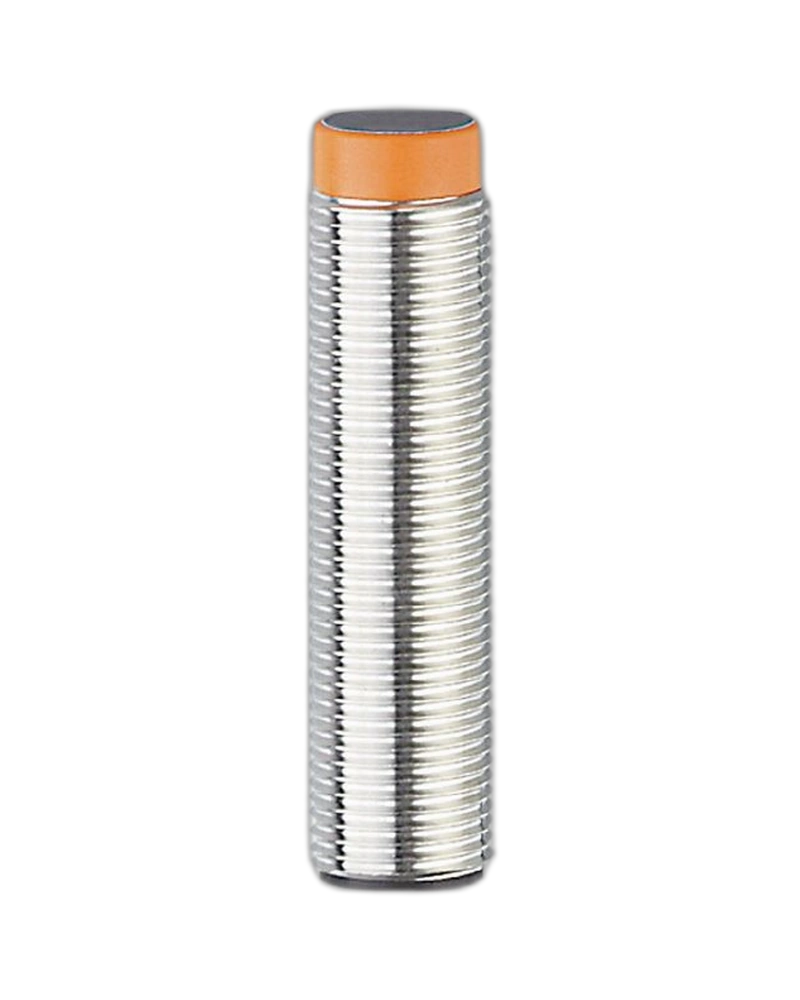

The IFM IFB2004-ARKG/UP/US-100-IRS RT Inductive Sensor provides reliable non-contact metal detection with a 4 mm sensing range, PNP/NPN output, and high-speed 1500 Hz switching frequency for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable metal detection is essential for modern Industrial Automation UAE applications, where accurate sensing helps machines monitor object presence, position, and movement. The IFM IF5793 IFB2004-ARKG/UP/US-100-IRS RT Inductive Sensor provides dependable non-contact detection for automated machinery, conveyors, production systems, and industrial equipment.
With a 4 mm sensing range and non-flush mounting design, the sensor offers reliable detection of metallic components while allowing flexible installation. Its selectable PNP/NPN normally open output supports integration with PLCs, controllers, and industrial automation systems.
The sensor operates from 10–36 V DC and supports a switching frequency of up to 1500 Hz, enabling fast response in automated production environments. Short-circuit and overload protection further support reliable operation.
For Industrial Sensors Supplier UAE applications, this sensor is suitable for machine monitoring, position detection, counting, material handling, and automated production processes.
• 4 mm sensing range
• PNP/NPN selectable electrical design
• Normally open output
• 10–36 V DC operating voltage
• Switching frequency up to 1500 Hz
• Non-flush mountable
• M12 x 1 threaded housing
• IP67 protection rating
• Short-circuit and overload protection
• M12 A-coded connector
• Red LED switching status indication
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, material handling systems, position detection, object counting, machine monitoring, and automated production lines.
| Specification | Details |
|---|---|
| Product Model | IFB2004-ARKG/UP/US-100-IRS RT |
| Part Number | IF5793 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Permanent Current Rating | 150 mA |
| Switching Frequency | 1500 Hz |
| Operating Distance | 0–3.24 mm |
| Mounting | Non-flush |
| Thread | M12 x 1 |
| Dimensions | M12 x 1 / L = 51 mm |
| Housing Material | Nickel-plated brass / PC |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to +80°C |
| Connection | M12 A-coded connector |
| Status Indicator | Red LED |
| Weight | 25.9 g |
