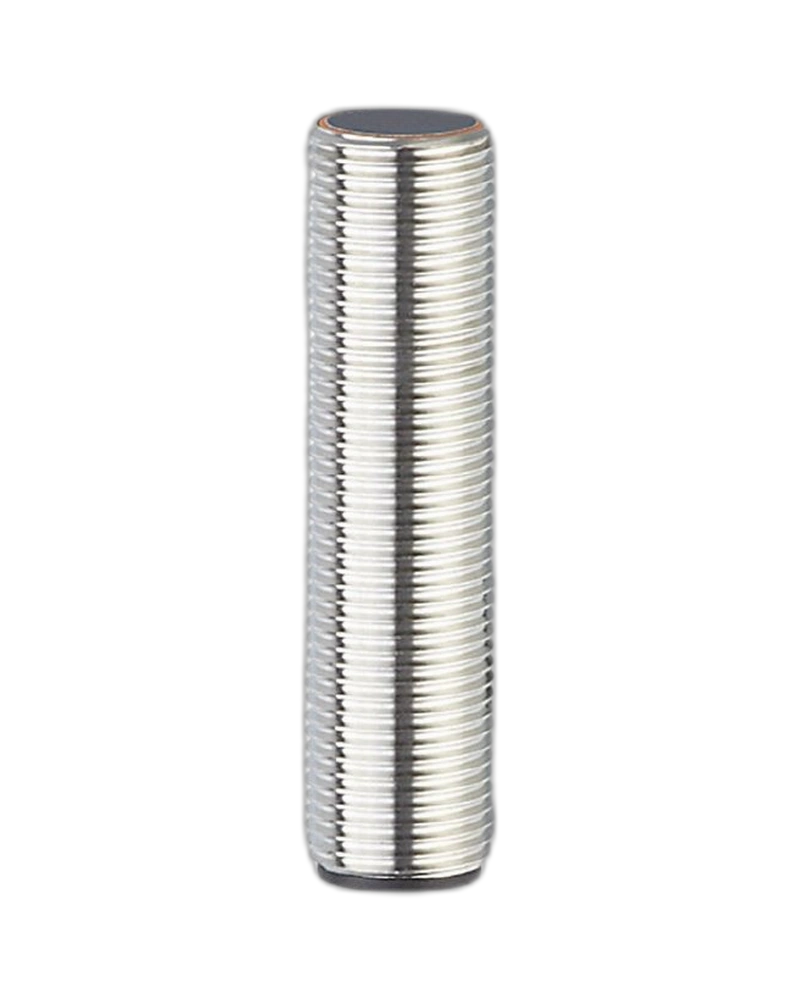

The IF5792 inductive sensor provides accurate 2 mm non-contact metal detection with PNP/NPN output, M12 construction, and high switching frequency for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5792 Inductive Sensor provides reliable non-contact metal detection for Industrial Automation UAE applications. It helps automated machinery detect metal components accurately for position monitoring, object detection, and process control.
With a 2 mm sensing range, selectable PNP/NPN electrical design, and switching frequency up to 1200 Hz, the sensor supports fast and flexible integration with industrial control systems. Its compact threaded housing makes installation straightforward in automated machinery.
Suitable for factory automation, conveyor systems, assembly machinery, packaging equipment, machine tools, material handling, position detection, object counting, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5792 |
| Sensing Range | 2 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Thread | M12 x 1 |
| Switching Frequency | 1200 Hz |
| Protection Rating | IP65 |
| Mounting | Flush |
| Connection | M12 Connector |
| Application | Industrial Automation / Factory Automation |
