The IF5762 inductive sensor delivers reliable 4 mm metal detection with high switching frequency, programmable output, and robust construction for automated machinery and industrial production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

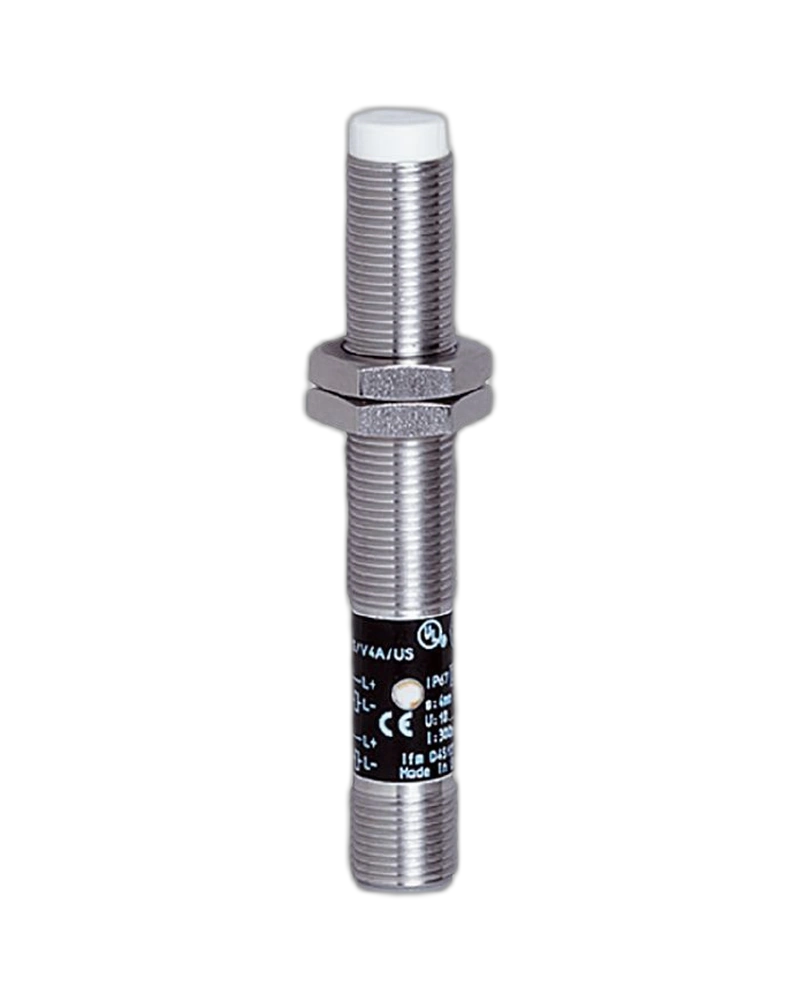

The IF5762 Inductive Sensor is engineered for dependable metal object detection in Industrial Automation Systems in UAE. It enables machines to monitor component position, movement, and presence without physical contact.
With a 4 mm sensing range, high switching frequency, and programmable normally open/normally closed output, the sensor can be integrated into various automation controllers and production systems. Its robust metal housing provides reliable performance in industrial environments.
Suitable for factory automation, conveyors, packaging machines, assembly systems, material handling, machine tools, production lines, object detection, and position monitoring.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5762 |
| Sensing Range | 4 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed – Selectable |
| Operating Voltage | 10–55 V DC |
| Thread | M12 x 1 |
| Switching Frequency | 1500 Hz |
| Protection Rating | IP67 |
| Technology | 2-wire |
| Application | Industrial Automation / Machine Building |
