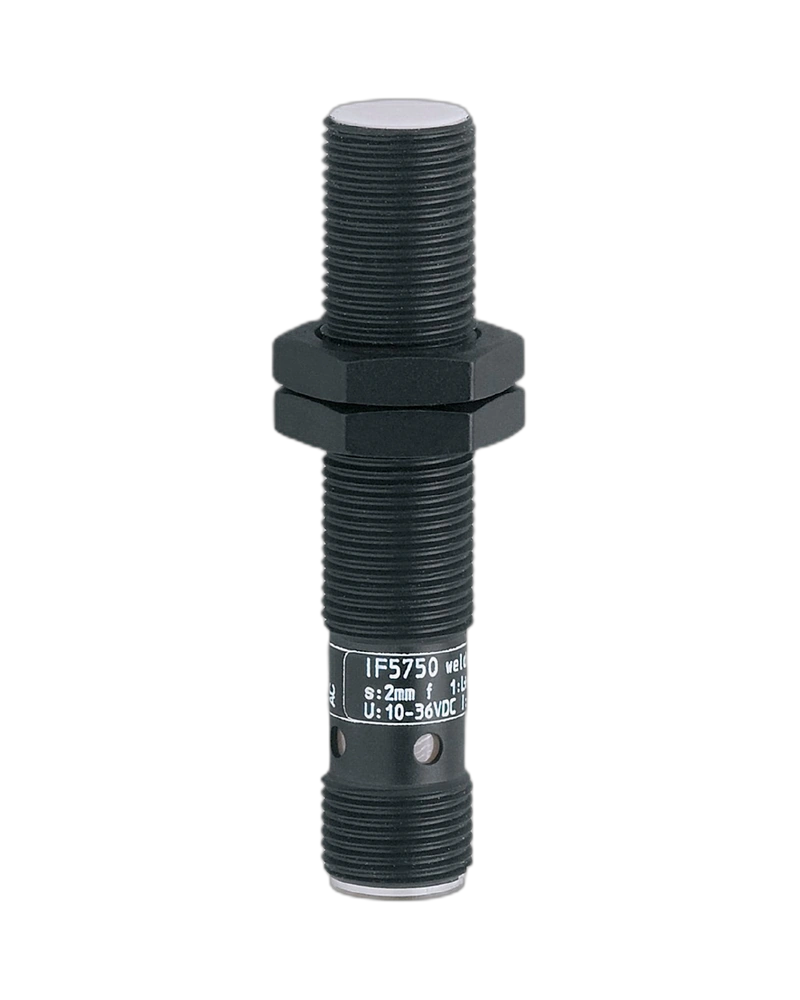

The IF5750 inductive sensor is designed for reliable metal detection in welding and industrial automation applications. Its magnetic-field immunity, 2 mm sensing range, and flush mounting make it suitable for demanding machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5750 Inductive Sensor is designed for applications where sensors may be exposed to electromagnetic fields generated during welding processes. Its weld-field-resistant design helps maintain reliable detection performance.
The sensor features an M12 threaded metal housing and flush mounting capability. Its 2 mm sensing range and high switching frequency support accurate and fast detection in automated machinery.
It is suitable for Industrial Automation UAE, welding equipment, machine monitoring, and factory automation systems.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5750 |
| Manufacturer | IFM |
| Product Code | IFK3002UBPKG/SC/US-104-DPS |
| Sensor Type | Inductive Proximity Sensor |
| Special Feature | Weld-field / magnetic-field immune |
| Sensing Range | 2 mm |
| Installation | Flush mountable |
| Electrical Design | DC PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 1000 Hz |
| Thread | M12 × 1 |
| Length | 60 mm |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Housing | Brass PTFE-coated |
| Active Face | PTFE |
| Operating Temperature | -25 to +70°C |
| Application | Welding / Industrial Automation |
