The IF5723 inductive sensor provides reliable 2 mm metal detection with programmable normally open or normally closed output. Its short metal housing and high switching frequency make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

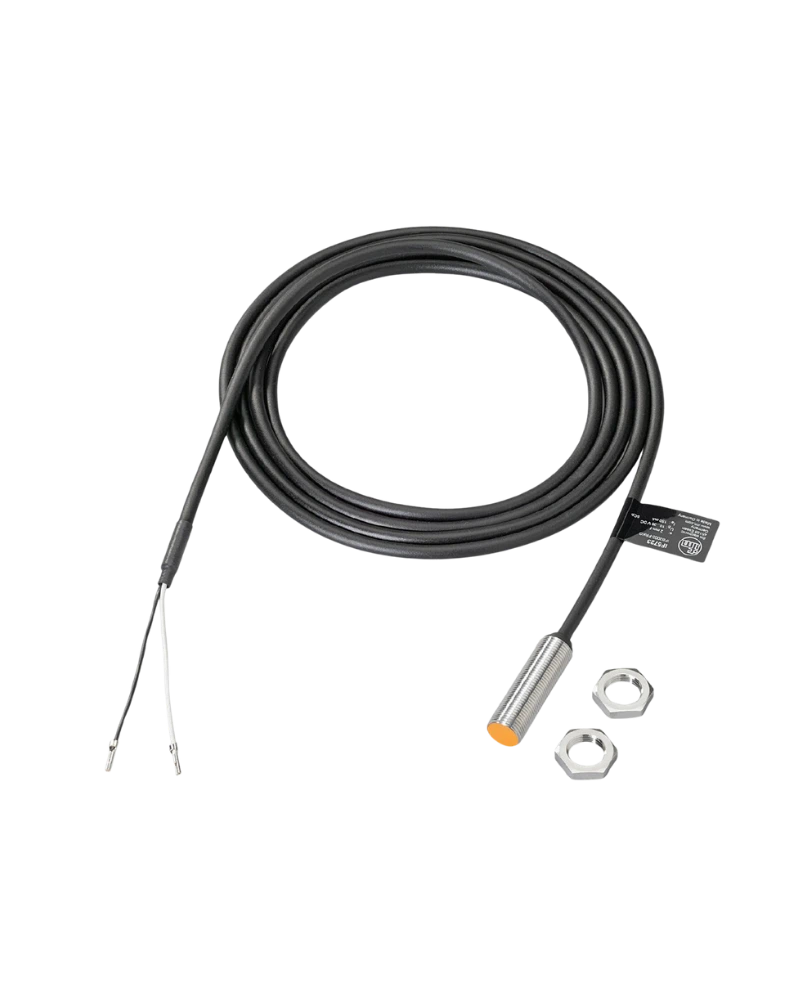

The IF5723 Inductive Sensor is designed for precise detection of metallic objects in industrial machinery. Its programmable output function provides additional flexibility when integrating the sensor into different control systems.
The compact housing is suitable for applications with limited installation space. Its high switching frequency and IP67 protection support reliable operation in automated production environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5723 |
| Manufacturer | IFM |
| Product Code | IFB2002-FRKG/PH |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally Open / Normally Closed programmable |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Thread | M12 × 1 |
| Housing | Metal |
| Protection Rating | IP67 |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
