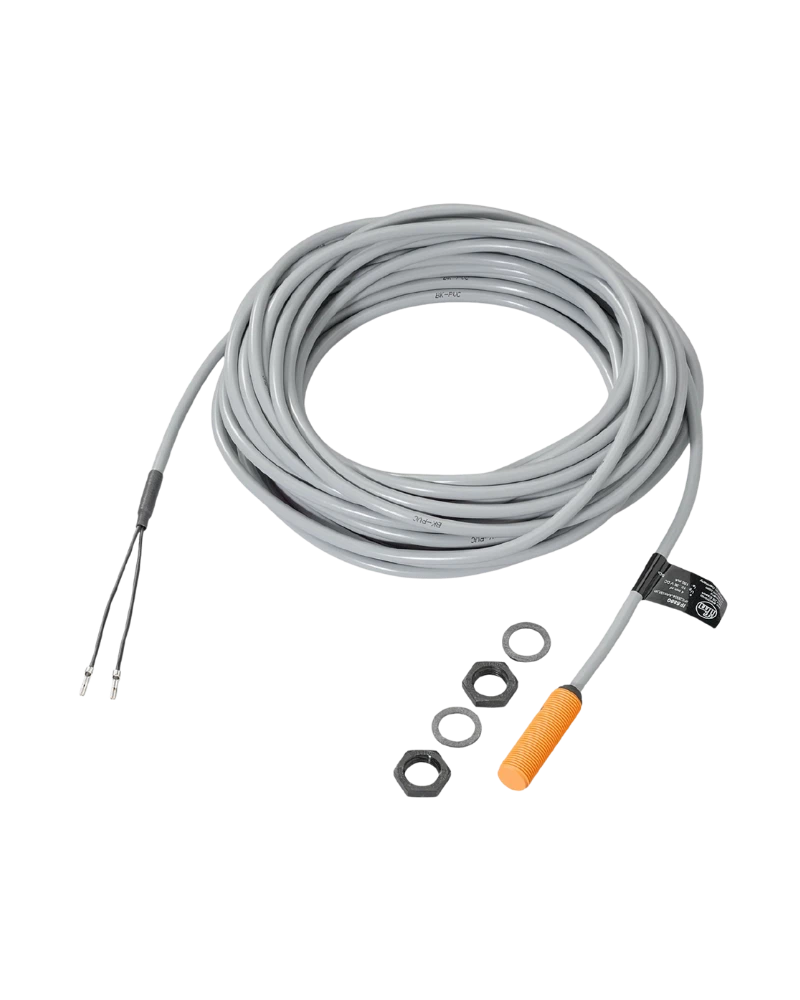

The IF5721 inductive sensor provides accurate 2 mm metal detection with PNP/NPN normally open output. Its compact M12 design and IP67 protection make it suitable for automated machinery and industrial production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5721 Inductive Sensor is designed to detect metallic objects accurately without physical contact. It supports reliable position sensing, component detection, and machine monitoring in automated production systems.
Its M12 threaded construction and compact 40 mm body make it suitable for machinery with limited installation space. The sensor can be integrated into different Industrial Automation Systems in UAE.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5721 |
| Manufacturer | IFM |
| Product Code | IFC2002-ARKG/UP |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Housing | PBT |
| Thread | M12 × 1 |
| Length | 40 mm |
| Cable | 2 m |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
