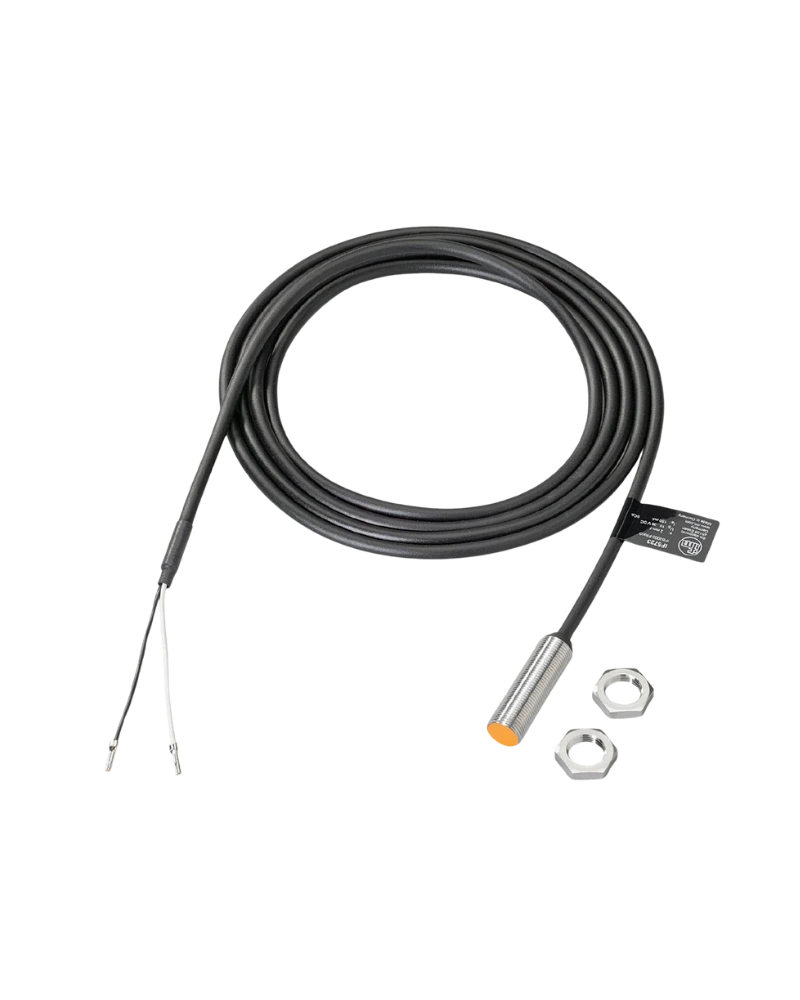

The IF5720 inductive sensor is a compact 2 mm flush-mount proximity sensor designed for reliable metal detection in industrial machinery. Its robust construction and high switching frequency support efficient factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5720 Inductive Sensor is designed for applications requiring accurate detection of metallic components in compact machine installations. Its short housing makes it suitable where available mounting space is limited.
The sensor provides 2 mm sensing with a PNP/NPN normally open output. Its IP67 protection and wide operating temperature range support reliable operation in industrial environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5720 |
| Manufacturer | IFM |
| Product Code | IFB2002-ARKG/UP |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1200 Hz |
| Housing | Metal |
| Thread | M12 × 1 |
| Length | 40 mm |
| Cable | 2 m |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
