The IF5719 inductive sensor provides reliable 4 mm metal detection with PNP/NPN normally open output. Its short M12 housing and IP67 protection make it suitable for machinery with limited installation space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

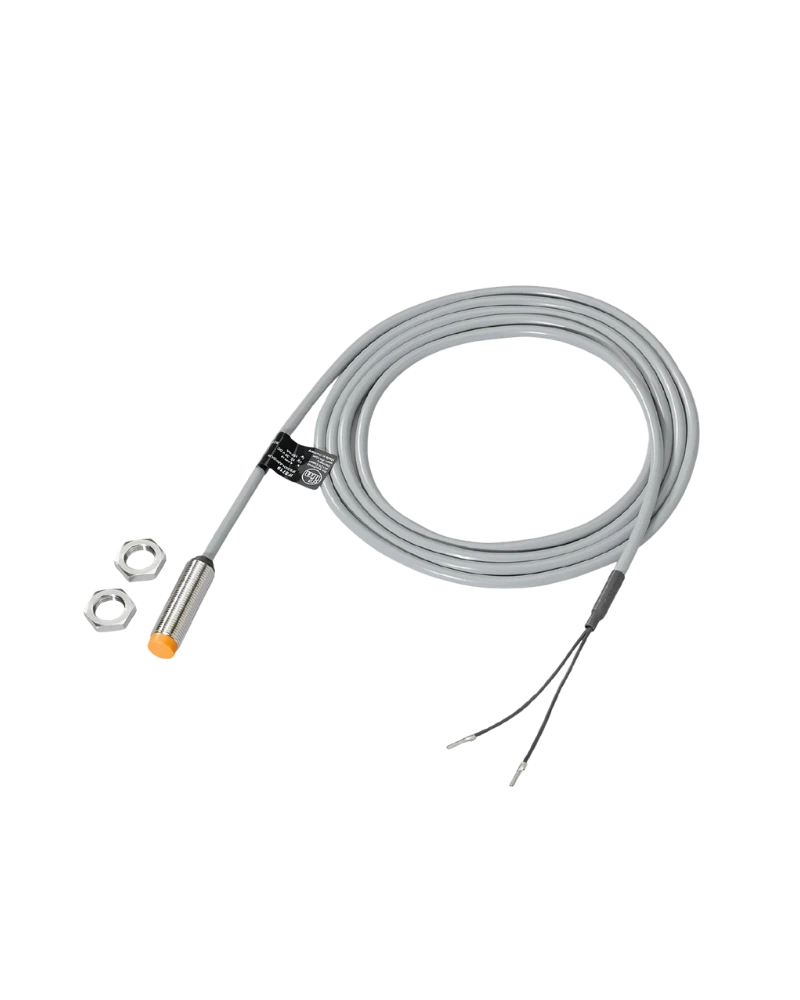

The IF5719 Inductive Sensor is designed for reliable metal object detection in industrial automation systems. Its short housing makes it useful for applications where installation space is limited.
It can detect metallic components without physical contact, supporting accurate machine monitoring and position detection.
The sensor operates across a wide temperature range and provides a high switching frequency for fast detection. Its IP67 protection supports use in demanding factory environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5719 |
| Manufacturer | IFM |
| Product Code | IFB2004-ARKG/UP |
| Sensing Range | 4 mm |
| Installation | Non-flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1500 Hz |
| Housing | Plated brass / PC face |
| Thread | M12 × 1 |
| Length | 40 mm |
| Cable | 2 m |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Factory Automation |
