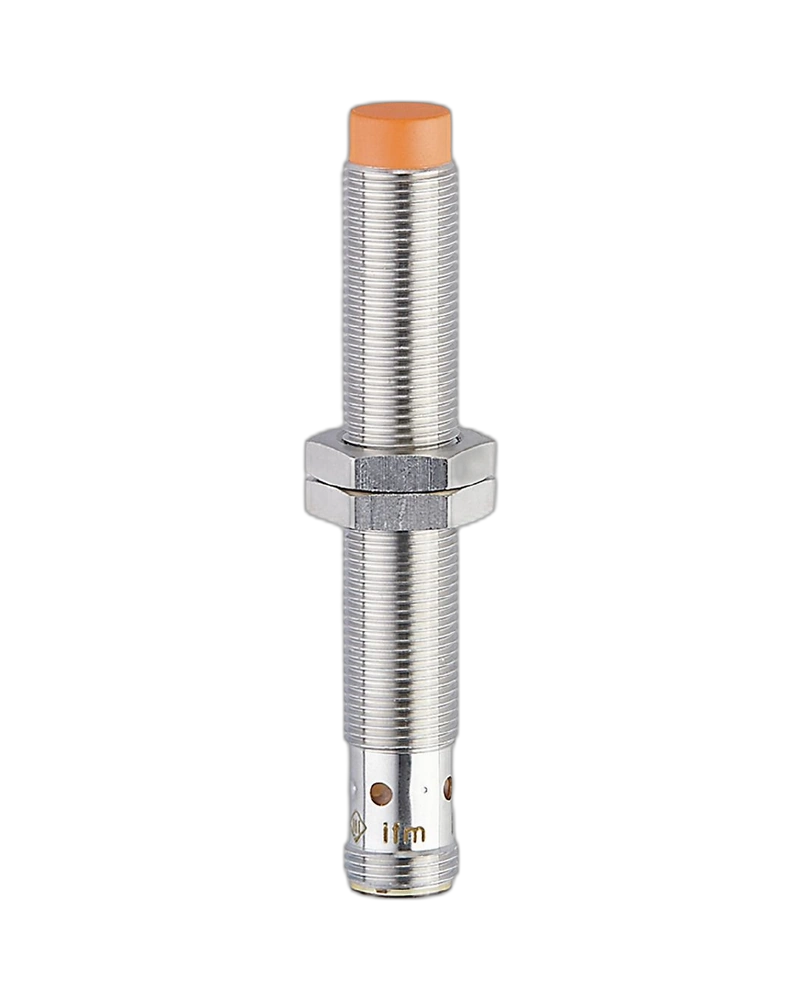

The IF5712 inductive sensor offers reliable 4 mm metal detection with a PNP normally open output. Its robust M12 design and gold-plated contacts make it suitable for industrial machinery and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5712 Inductive Sensor is designed to detect metallic objects accurately without physical contact. It supports reliable machine monitoring, component detection, and position sensing in automated production environments.
With its M12 threaded construction and IP67 protection, the sensor can be integrated into industrial equipment exposed to demanding operating conditions.
The IF5712 is suitable for Industrial Automation UAE and factory automation applications where dependable sensing is required.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5712 |
| Manufacturer | IFM |
| Product Code | IFK3004-BPKG/US-104 |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 mm ±10% |
| Installation | Non-flush mountable |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Thread | M12 × 1 |
| Length | 60 mm |
| Special Feature | Gold-plated contacts |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
