The IF5706 inductive sensor provides dependable metal object detection with a 4 mm sensing range, PNP output, and long 4 m PVC cable. It is suitable for factory automation, machine monitoring, and industrial equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

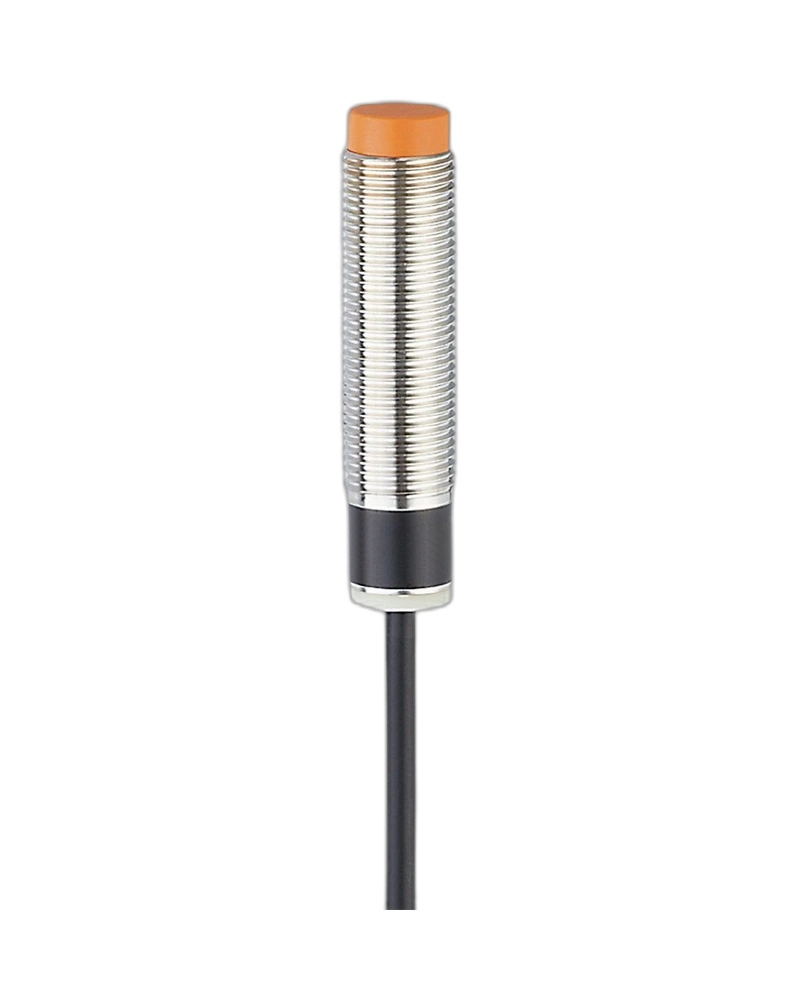

The IF5706 Inductive Sensor is designed for reliable non-contact detection of metallic objects. It helps automated machines monitor component presence and movement while reducing the need for mechanical sensing components.
Its M12 threaded construction makes it suitable for integration into Industrial Automation Equipment UAE applications.
The sensor comes with a 4 m PVC cable, providing additional flexibility when installing sensors on machinery, conveyors, and production equipment.
Its IP67-rated construction supports reliable operation in demanding industrial environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5706 |
| Manufacturer | IFM |
| Product Code | IFK3004-BPOG/4M |
| Sensing Range | 4 mm |
| Installation | Non-flush mountable |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 300 Hz |
| Housing | Nickel-plated brass / PC |
| Thread | M12 × 1 |
| Cable Length | 4 m |
| Cable Type | PVC, 3 × 0.14 mm² |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
