The IF5704 inductive sensor provides reliable non-contact metal detection for industrial automation and machine monitoring. Its robust metal housing, 4 mm sensing range, and high switching frequency make it suitable for demanding factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

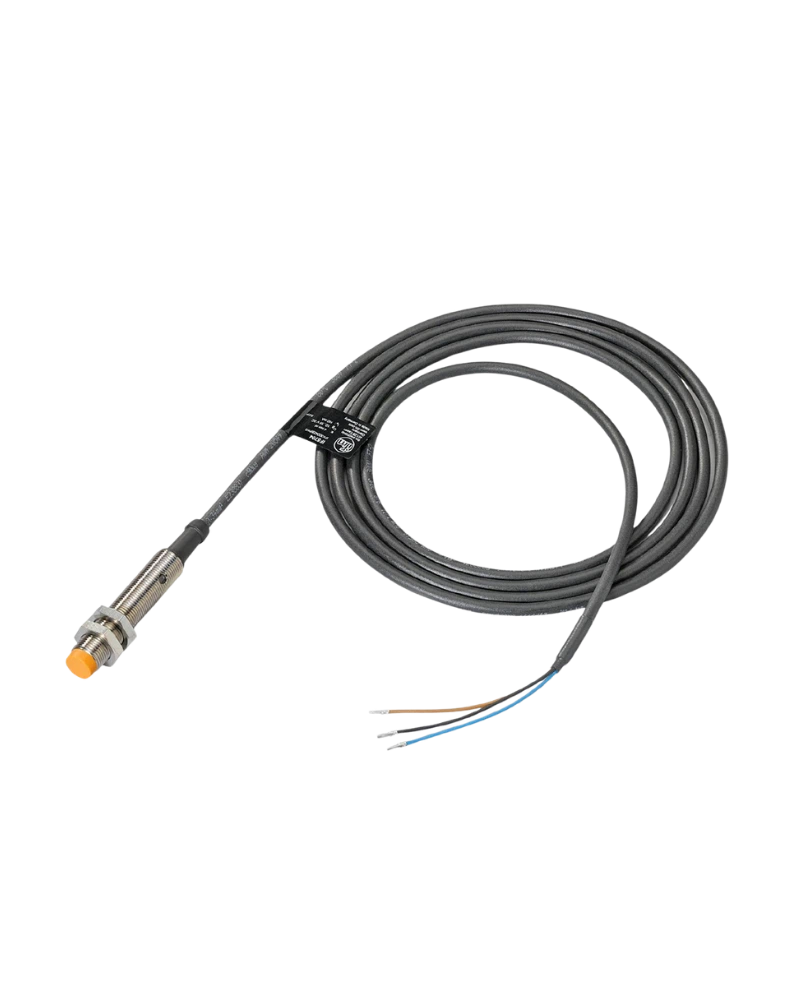

The IF5704 Inductive Sensor is designed for precise detection of metallic objects in automated machinery and production systems. It enables non-contact sensing, helping machines identify component presence and position without mechanical contact.
This sensor is suitable for Industrial Automation UAE applications including production machinery, conveyors, assembly systems, and automated material handling equipment.
The IF5704 features a robust threaded M12 design and high protection level. Its wide operating temperature range makes it suitable for industrial equipment operating in challenging conditions.
With a 4 mm sensing range and PNP normally open output, the sensor can be integrated into various Industrial Automation Systems in UAE.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5704 |
| Manufacturer | IFM |
| Product Code | IFK3004ZBPKG/BH |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Installation | Non-flush mountable |
| Electrical Design | DC PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1300 Hz |
| Housing | Threaded metal housing |
| Thread | M12 × 1 |
| Cable | 2 m |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +100°C |
| Application | Industrial Automation |
