The IF5684 inductive sensor provides reliable 2 mm metal detection with programmable NO/NC output and a 6 m cable. Its stainless-steel housing, high switching frequency, and IP67 protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

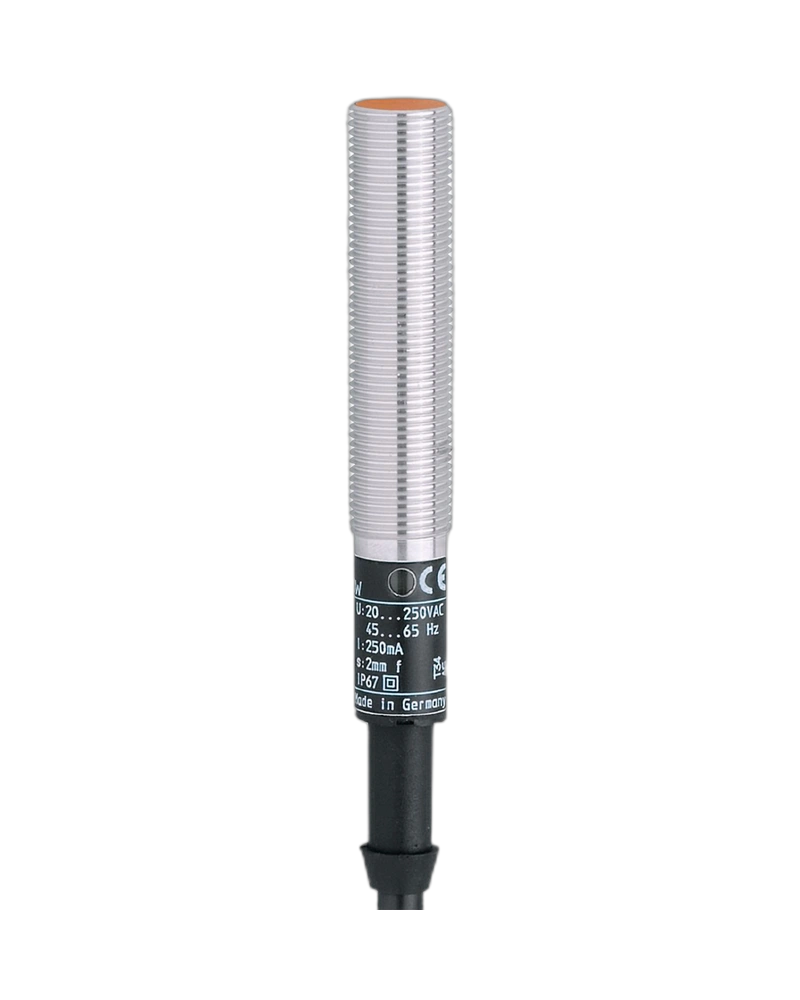

The IF5684 Inductive Sensor is designed for accurate non-contact detection of metallic components in industrial machinery. Its stainless-steel construction provides a durable solution for demanding production environments.
With a 6 m PUR cable and M12 threaded design, the sensor offers flexibility when installing it on machinery, production lines, and automated equipment.
The sensor provides programmable NO/NC output functionality and high switching frequency. Its robust construction and IP67 protection support reliable operation in challenging industrial conditions.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5684 |
| Product Code | IFA2002-FRKG/V4A/6M/PH |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1200 Hz |
| Permanent Current Rating | 400 mA |
| Thread | M12 × 1 |
| Length | 71 mm |
| Housing Material | Stainless Steel 1.4571 / 316Ti |
| Sensing Face | PBT |
| Cable Length | 6 m |
| Cable Type | PUR |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Indicator | Yellow LED |
| Application | Industrial Automation |
