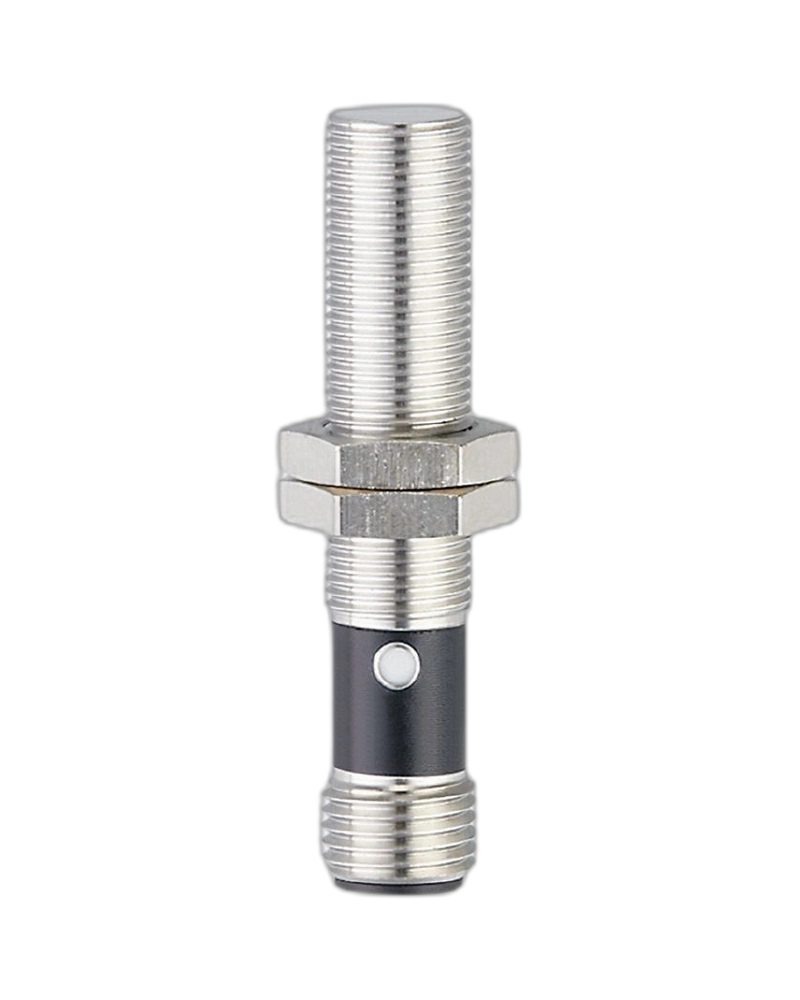

The IF5670 inductive sensor is designed for reliable metal detection in industrial automation and welding applications. Its magnetic-field immunity, 2 mm sensing range, and robust metal housing make it suitable for demanding production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5670 Inductive Sensor is specifically designed for applications where magnetic fields from welding processes may affect conventional sensors. It provides reliable metal detection in welding and automated manufacturing environments.
With a 1000 Hz switching frequency and 2 mm sensing range, the sensor supports fast component detection and machine position monitoring.
Its metal M12 housing, IP67 protection, and clearly visible switching-status LED make the sensor suitable for demanding Industrial Automation Systems in UAE.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5670 |
| Product Code | IFK3002UBPKG/US-104-DPS |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 1000 Hz |
| Permanent Current Rating | 250 mA |
| Thread | M12 × 1 |
| Length | 60 mm |
| Housing | Brass, white-bronze coated |
| Sensing Face | PTFE |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +70°C |
| Special Feature | Magnetic-field immune |
| Indicator | Yellow LED |
| Application | Welding / Industrial Automation |
