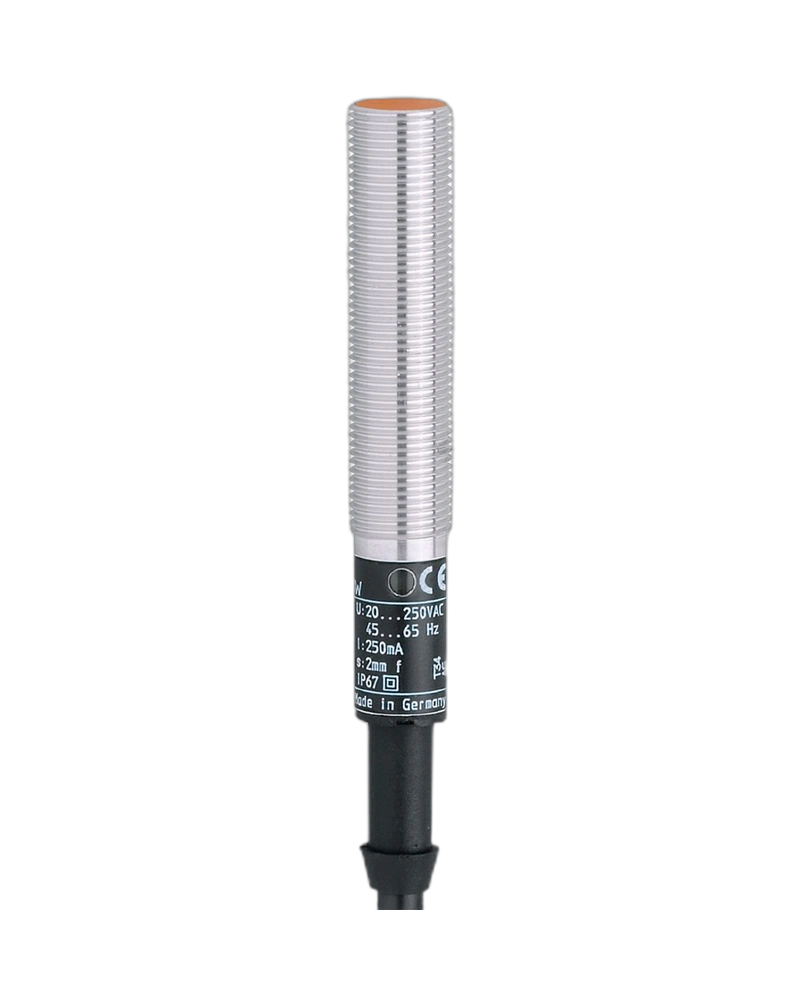

The IF5662 inductive sensor provides reliable 2 mm metal detection with programmable NO/NC output and a long 6 m cable. Its robust M12 construction and IP67 protection make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5662 Inductive Sensor is designed for non-contact detection of metallic objects in industrial machinery. Its 6 m PUR/PVC cable provides additional installation flexibility for machines and production lines.
The sensor supports selectable normally open and normally closed output functions with PNP/NPN electrical design. This makes it suitable for different automation control configurations.
The robust metal housing, IP67 protection, and wide operating temperature range make the IF5662 suitable for demanding Industrial Sensors Supplier UAE applications.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5662 |
| Product Code | IFA2002-FRKG/6M/PH |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1100 Hz |
| Permanent Current Rating | 400 mA |
| Thread | M12 × 1 |
| Length | 71 mm |
| Cable Length | 6 m |
| Cable Type | PUR/PVC, 2 × 0.34 mm² |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Indicator | Yellow LED |
| Application | Industrial Automation |
