The IF5653 inductive sensor provides precise 2 mm metal detection with complementary PNP output. Its flush-mount design, M12 connection, and reliable switching performance make it suitable for industrial automation and factory equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

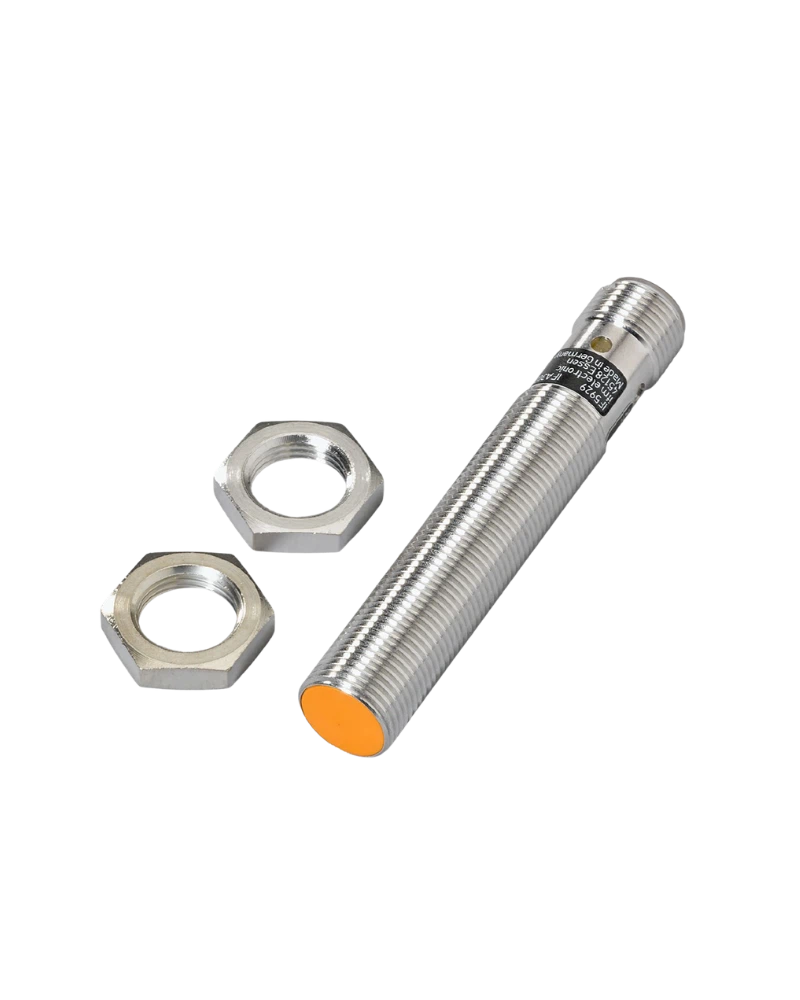

The IF5653 Inductive Sensor is designed for accurate non-contact detection of metallic components. It helps automation systems identify component presence and position without mechanical contact.
The complementary output function provides additional flexibility for automation control applications. The flush-mount M12 design allows the sensor to be integrated into machinery where compact installation is required.
The sensor is suitable for factory automation, machine monitoring, production equipment, and other Industrial Automation Equipment UAE applications.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5653 |
| Product Code | IFA4002-CPKG/US-104-DPA |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | DC PNP |
| Output Function | Complementary |
| Operating Voltage | 10–36 V DC |
| Current Consumption | 15 mA at 24 V |
| Switching Frequency | 1200 Hz |
| Permanent Current Rating | 250 mA |
| Short-Time Current Rating | 400 mA |
| Housing | Brass, white bronze coated |
| Sensing Face | PC |
| Dimensions | M12 × 1 / L = 70 mm |
| Connection | M12 connector |
| Protection Rating | IP65 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
