The IF5647 inductive sensor delivers reliable 4 mm metal detection with selectable PNP/NPN and NO/NC output functionality. Its compact M12 design and high switching frequency make it suitable for industrial automation and machine monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

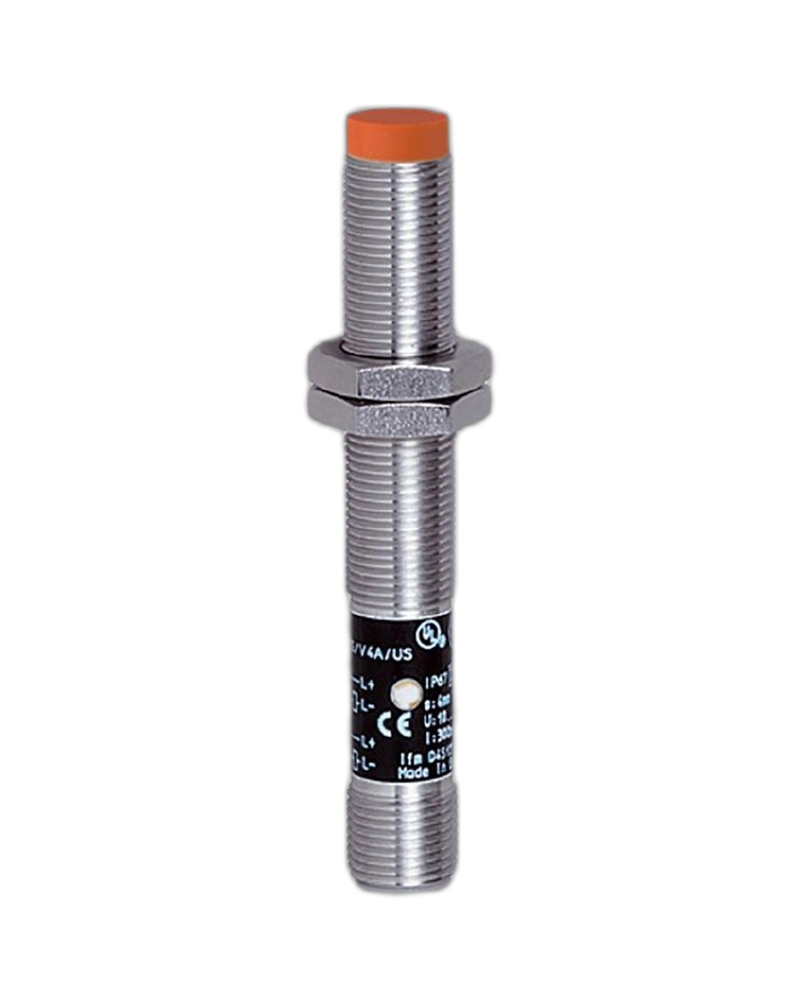

The IF5647 Inductive Sensor is designed for fast and accurate detection of metallic objects. It supports machine position sensing and component monitoring in automated production systems.
Its selectable PNP/NPN electrical design and programmable output function provide flexibility when connecting the sensor to different automation control systems.
The robust threaded M12 construction and IP67 protection support dependable performance in industrial environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5647 |
| Product Code | IFA2004-FRKG/US-100-IRF |
| Manufacturer | IFM |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 mm ±10% |
| Installation | Non-flush mountable |
| Electrical Design | PNP/NPN selectable |
| Output Function | NO/NC selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1500 Hz |
| Permanent Current Rating | 300 mA |
| Thread | M12 × 1 |
| Length | 83 mm |
| Protection Rating | IP67 |
| Operating Temperature | Industrial temperature range |
| Application | Industrial Automation |
