The IF5646 inductive sensor provides reliable 4 mm non-contact metal detection for industrial machinery and automated production systems. Its programmable output, high switching frequency, and IP67 protection support dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

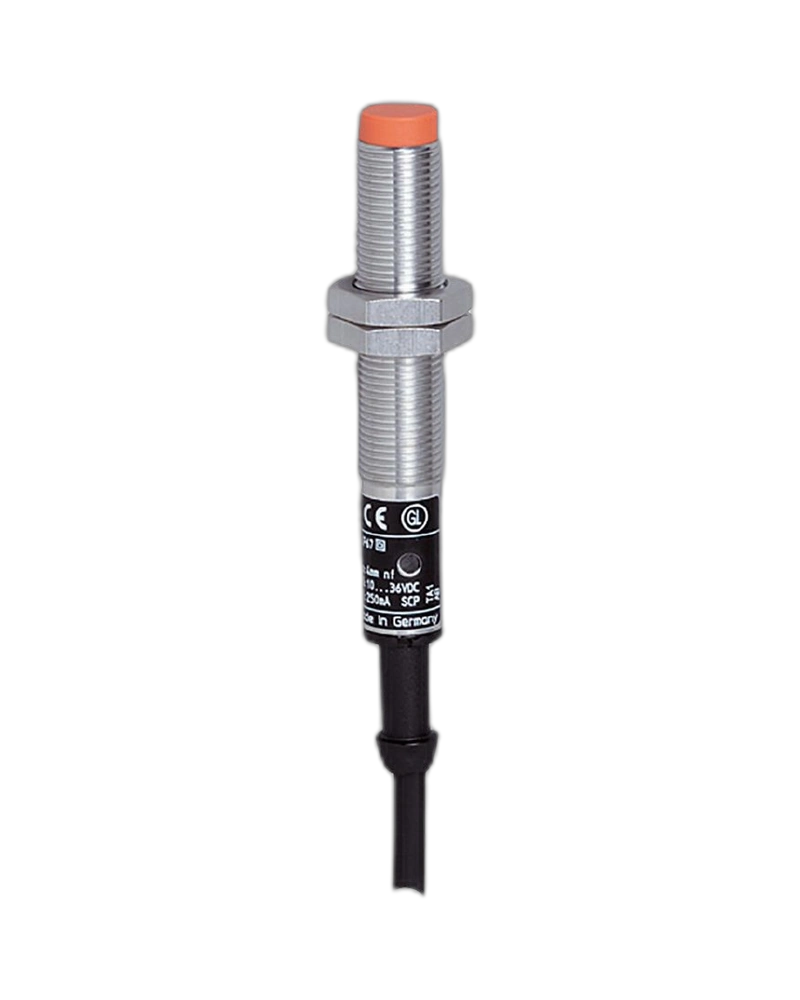

The IF5646 Inductive Sensor is designed for detecting metallic objects with a 4 mm sensing range. It helps automated equipment monitor component position and presence accurately.
Its selectable PNP/NPN and NO/NC functionality allows flexible integration into industrial control systems. The M12 threaded housing also supports straightforward machine installation.
With IP67 protection and a wide operating temperature range, the IF5646 is suitable for demanding Industrial Equipment & Supplies in UAE applications.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5646 |
| Product Code | IFA2004-FRKG/PH |
| Manufacturer | IFM |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 mm ±10% |
| Installation | Non-flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1500 Hz |
| Permanent Current Rating | 400 mA |
| Thread | M12 × 1 |
| Length | 71 mm |
| Connection | Cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Application | Industrial Automation |
