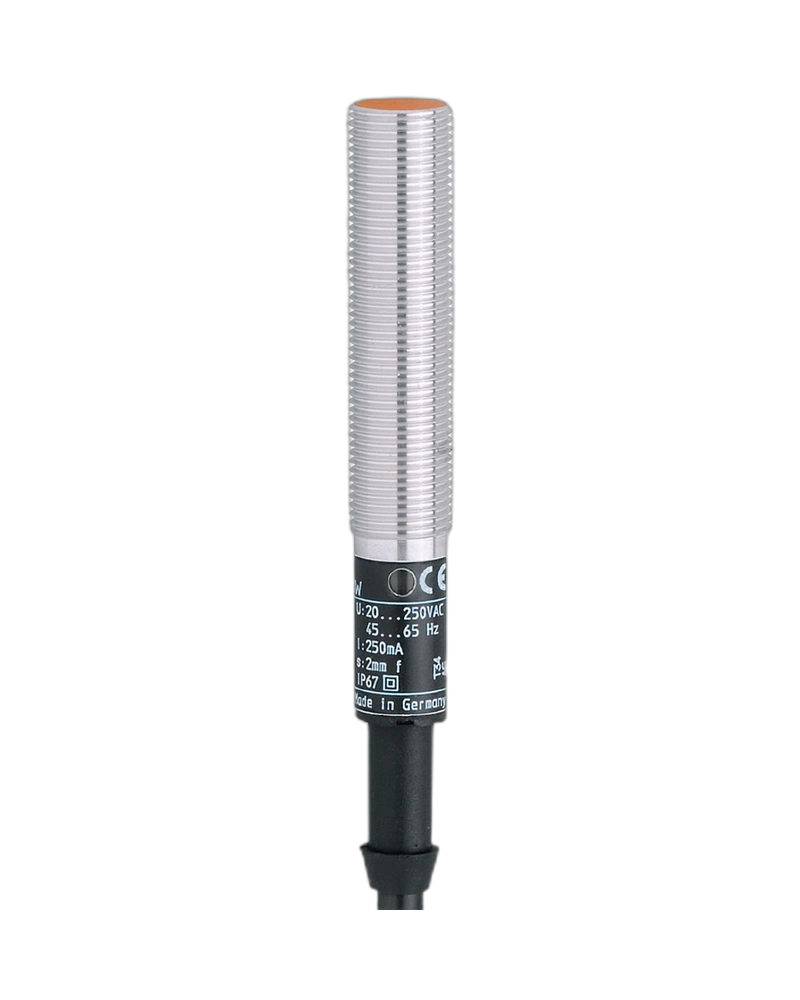

The IF5645 inductive sensor is designed for reliable 2 mm metal detection with programmable NO/NC output functionality. Its robust M12 construction and high switching frequency make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5645 Inductive Sensor provides dependable non-contact sensing of metallic objects. It can be used for position detection, component monitoring, and machine automation where reliable proximity sensing is required.
The sensor supports selectable PNP/NPN operation with normally open or normally closed output functionality, allowing flexible integration with automation control systems.
Its robust threaded metal housing and IP67 protection help support consistent performance in demanding factory environments.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5645 |
| Product Code | IFA2002-FRKG/PH |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1100 Hz |
| Permanent Current Rating | 400 mA |
| Thread | M12 × 1 |
| Length | 71 mm |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Technology | Two-wire |
| Application | Industrial Automation |
