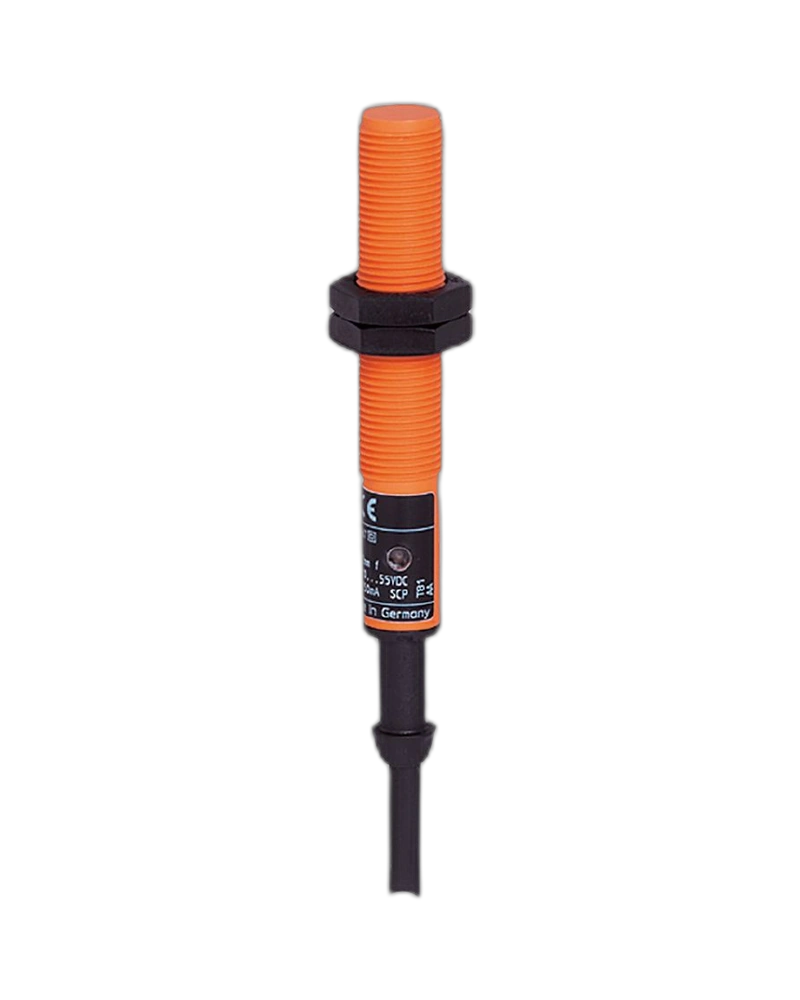

The IF5644 inductive sensor offers dependable 2 mm metal detection with programmable normally open and normally closed output functions. Its M12 housing and IP67 protection make it suitable for industrial automation and machine monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5644 Inductive Sensor provides accurate non-contact detection of metallic components in industrial machinery. It helps automation systems identify component presence and position without mechanical contact.
The sensor supports selectable normally open and normally closed output functions, providing flexibility when connecting it to different control systems.
Its robust threaded construction and IP67 protection make the IF5644 suitable for Industrial Automation Systems in UAE, production machinery, conveyors, and automated assembly equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5644 |
| Product Code | IF-2002-FRKG/PH |
| Manufacturer | IFM |
| Sensing Range | 2 mm |
| Installation | Flush mountable |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1100 Hz |
| Permanent Current Rating | 400 mA |
| Thread | M12 × 1 |
| Dimensions | M12 × 1 / L = 71 mm |
| Connection | Cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80°C |
| Technology | Two-wire |
| Application | Industrial Automation |
