The IF5622 IFA3004-APKG/US-104 is an M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects. With a 4 mm sensing range, PNP normally closed output, 10–30 V DC operation, 400 Hz switching frequency and IP67 protection, it is suitable for machine positioning and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5622 IFA3004-APKG/US-104 is a compact inductive sensor designed for precise and reliable detection of metallic objects in industrial automation systems. Its non-contact sensing principle enables dependable object and position detection without mechanical contact, helping reduce wear and maintenance requirements.

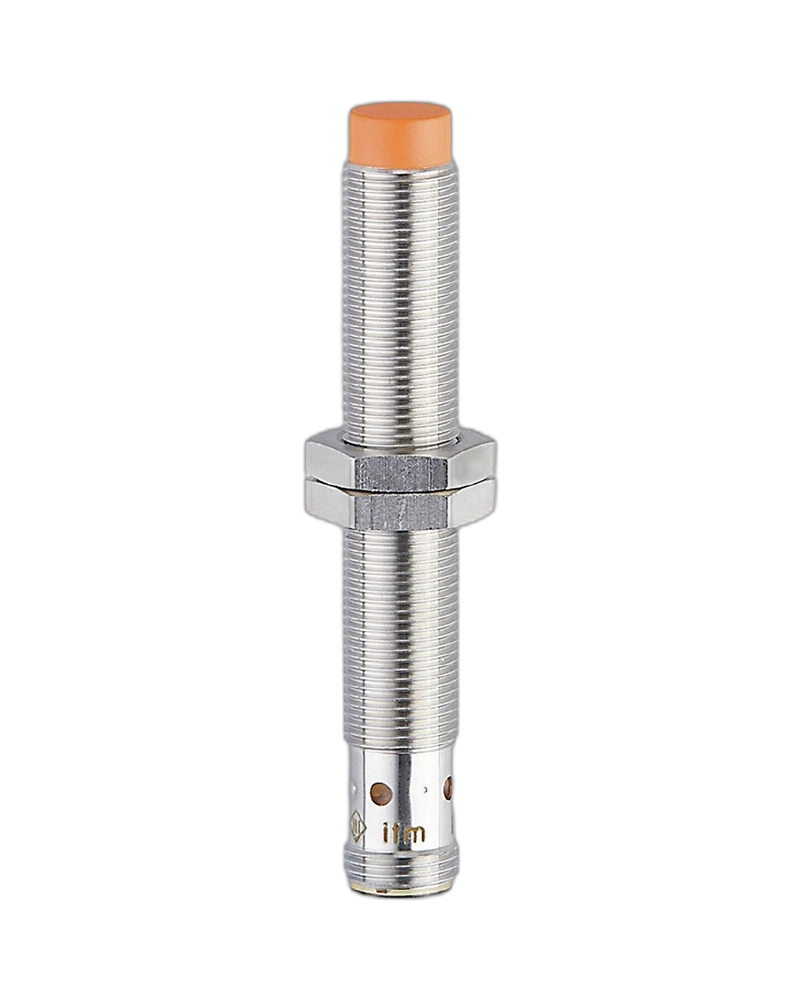

The sensor features an M12 x 1 threaded metal housing, a 4 mm sensing range and non-flush installation. Its PNP normally closed output makes it suitable for integration with compatible industrial control systems and machine automation equipment.
4 mm sensing range
M12 x 1 threaded housing
Non-flush mounting
PNP normally closed output
10–30 V DC operating voltage
400 Hz switching frequency
M12 connector
IP67 protection rating
3-wire electrical design
Yellow LED switching-status indication
Short-circuit protection
Overload protection
Reverse polarity protection
Robust metal housing
The IF5622 uses inductive sensing technology to detect metallic targets without physical contact. The 4 mm sensing range provides reliable detection for machine positioning, presence detection and component monitoring applications.
The sensor operates on 10–30 V DC and uses a PNP normally closed switching output. Its M12 connector provides a practical connection method for industrial automation installations. The IP67-rated construction helps protect the sensor against dust and temporary water exposure in demanding industrial environments.
The IF5622 is suitable for machine position detection, component presence sensing, conveyor systems, assembly machinery, production equipment, packaging machinery and general factory automation.
It is an effective choice for customers sourcing Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE.
The non-contact operating principle allows the IF5622 to detect metallic components without physical contact between the sensor and target. Its high switching frequency of 400 Hz supports repetitive detection tasks, while the robust threaded housing provides reliable installation in industrial machinery.
Non-contact metallic object detection
Reliable position and presence monitoring
Compact M12 threaded construction
Fast 400 Hz switching frequency
IP67 protection for industrial environments
Easy integration through M12 connection
Protection against short circuit and overload
For businesses looking for an Industrial Automation Supplier in UAE, the IF5622 offers a dependable solution for machine sensing, positioning and automated object detection.
| Specification | Details |
|---|---|
| Product Code | IF5622 |
| Model | IFA3004-APKG/US-104 |
| Sensor Type | Inductive proximity sensor |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 ± 10% mm |
| Installation | Non-flush |
| Housing Thread | M12 x 1 |
| Housing Length | 80 mm |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <15 mA |
| Switching Frequency | 400 Hz |
| Switching Output Current | 200 mA |
| Max. Voltage Drop | 2.5 V |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Housing Material | Brass, white-bronze coated |
| Sensing Face | PBT |
| Operating Temperature | -25 to +80 °C |
| Status Indication | Yellow LED |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.5 |
| Correction Factor – Aluminium | 0.4 |
| Correction Factor – Copper | 0.3 |
