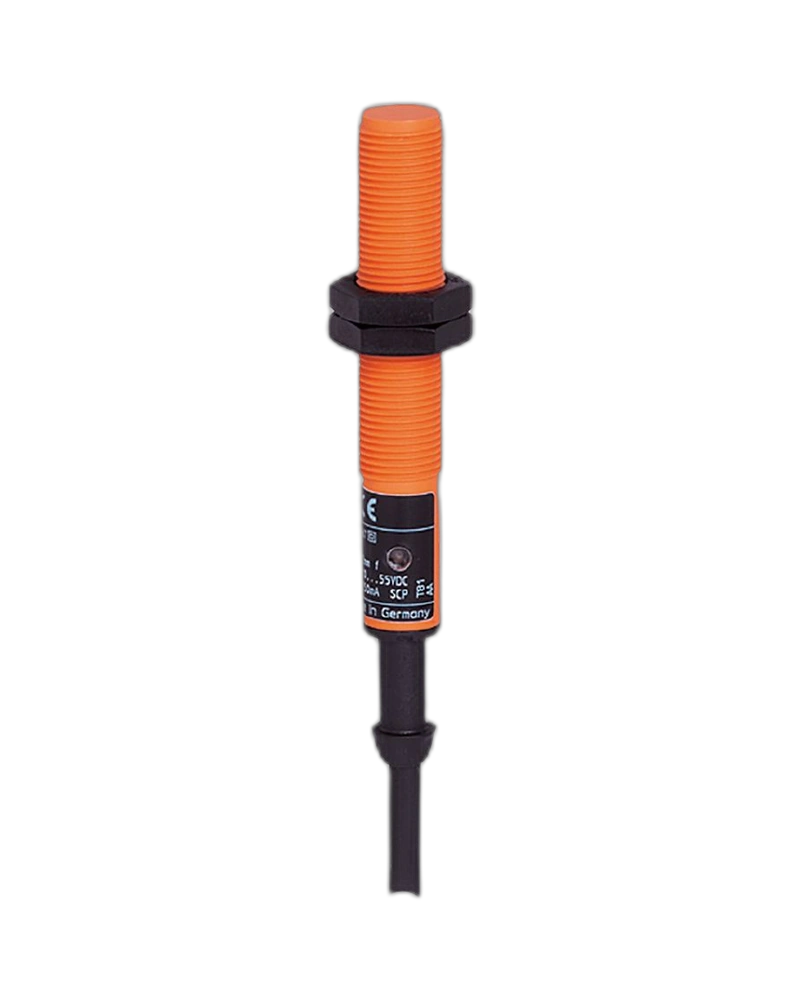

The IF5621 IF-2004-FRKG/6M/PH is an IFM inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation applications. It features a 4 mm sensing range, selectable PNP/NPN output, programmable normally open/normally closed function, and a 6 m PUR/PVC cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5621 IF-2004-FRKG/6M/PH is a compact M12 inductive sensor engineered for dependable metallic object detection in industrial machinery and automation systems. Its non-contact sensing principle provides reliable switching without mechanical contact, making it suitable for position detection, presence monitoring, counting and machine control applications.
The sensor has a 4 mm sensing range and is designed for non-flush installation. Its two-wire DC design supports PNP/NPN operation with selectable normally open or normally closed output functionality.
4 mm sensing range
M12 x 1 threaded housing
Non-flush installation
PNP/NPN output
Selectable normally open/normally closed output
10–55 V DC operating voltage
6 m PUR/PVC cable
Up to 1500 Hz switching frequency
IP67 protection rating
PBT housing material
Yellow LED switching-status indication
Short-circuit and overload protection
The IF5621 uses inductive sensing technology to detect metallic targets without physical contact. With a 4 mm nominal sensing range and an M12 x 1 threaded housing, it can be integrated into industrial machines where dependable proximity detection is required.
The sensor operates from 10–55 V DC and provides a selectable PNP/NPN output configuration. Its programmable normally open/normally closed switching function allows flexible integration with different control-system requirements.
The IF5621 is suitable for machine positioning, object presence detection, component counting, conveyor systems, assembly equipment, packaging machinery and general factory automation. Its high switching frequency makes it appropriate for applications requiring fast and repetitive detection.
It is a practical choice for businesses sourcing Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE.
The non-contact operating principle helps reduce mechanical wear, while IP67 protection supports use in demanding industrial environments. The 6 m cable provides extended connection reach, and the selectable output function simplifies integration into different automation control systems.
For companies seeking an Industrial Automation Supplier in UAE, the IF5621 is a reliable solution for metallic object detection, machine monitoring and automated positioning applications.
| Specification | Details |
|---|---|
| Product Code | IF5621 |
| Model | IF-2004-FRKG/6M/PH |
| Sensor Type | Inductive sensor |
| Sensing Range | 4 mm |
| Installation | Non-flush |
| Housing Thread | M12 x 1 |
| Electrical Design | DC PNP/NPN |
| Output Function | Normally open / normally closed, selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1500 Hz |
| Cable Length | 6 m |
| Cable Type | PUR/PVC |
| Cable Conductors | 2 x 0.34 mm² |
| Protection Rating | IP67 |
| Housing Material | PBT |
| Operating Temperature | -25 to +80 °C |
| Switching Status | Yellow LED |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Dimensions | M12 x 1 / L = 71 mm |
| Weight | Approx. 220 g |
