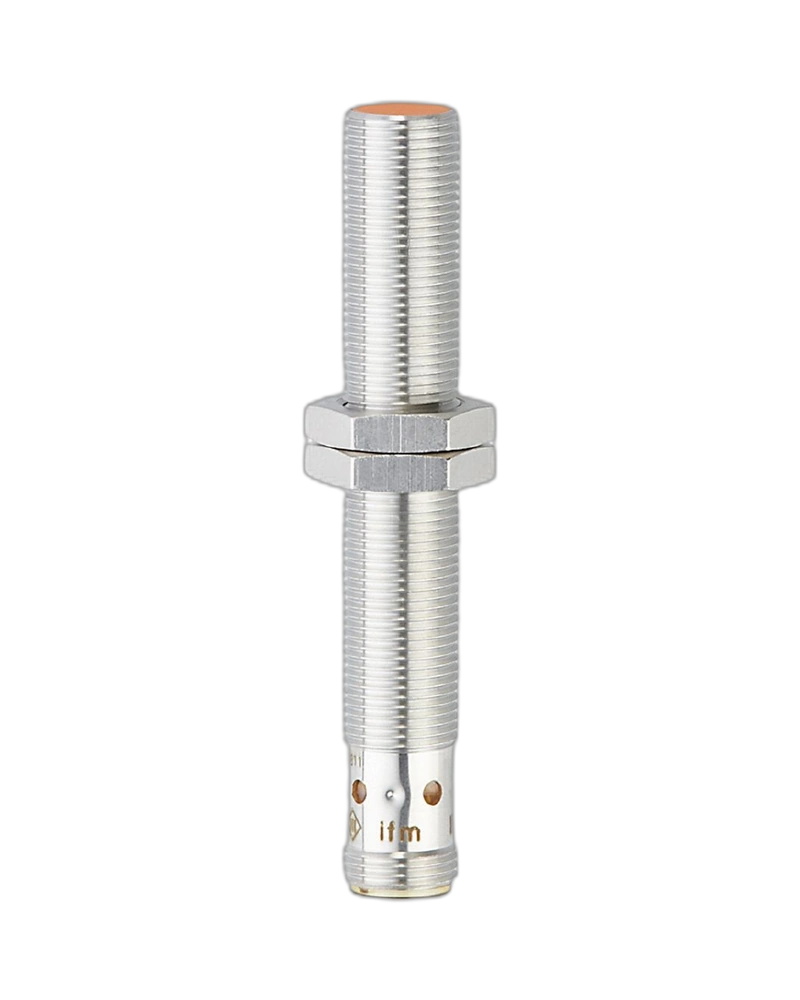

The IF5618 inductive sensor (IFA3002-APKG/US-104) from IFM is designed for dependable non-contact detection of metallic objects in industrial machinery and automated production systems. Its M12 x 1 threaded metal housing, 2 mm sensing range and flush-mountable construction allow reliable installation in compact machine environments.

The sensor uses a PNP normally closed switching output and operates with a 10–30 V DC supply. With a switching frequency of up to 800 Hz, it is suitable for fast object-detection and position-monitoring applications. The sensor also features an M12 connector with gold-plated contacts and IP67 protection for dependable operation in demanding industrial environments.

Key Features

2 mm sensing range
M12 x 1 threaded housing
Flush mountable installation
PNP normally closed output
10–30 V DC operating voltage
800 Hz switching frequency
IP67 protection rating
M12 connector connection
Gold-plated contacts
Yellow LED switching status indication
Short-circuit protection
Overload protection
Reverse-polarity protection
Robust metal housing
Operating temperature range -25°C to +80°C

Reliable Inductive Detection

The IF5618 detects metallic targets without physical contact, making it suitable for presence detection, position sensing and machine-control applications. Its 2 mm sensing range provides precise detection for compact industrial installations.

Electrical Performance

The sensor operates at 10–30 V DC and provides a PNP normally closed output. Its switching frequency of 800 Hz supports rapid detection tasks in automated machinery. The output provides up to 200 mA permanent current, while short-circuit and overload protection help protect the sensor during operation.

Compact Metal Housing

The IF5618 uses an M12 x 1 threaded housing with a length of approximately 80 mm. Its flush-mountable construction allows the sensing face to be integrated neatly into machine structures and automation equipment.

IP67 Industrial Protection

With an IP67 protection rating and an operating temperature range of -25°C to +80°C, the IF5618 is designed for use in demanding industrial environments. Its robust metal construction provides durability for machine and factory automation applications.

Easy Connection and Status Indication

The IF5618 uses an M12 connector and features gold-plated contacts for reliable electrical connection. A clearly visible yellow LED indicates the switching status, helping with installation, commissioning and maintenance.

Industrial Applications

The IF5618 can be used for:

Machine position detection
Metal object detection
Conveyor systems
Assembly machinery
Packaging equipment
Production lines
Material handling systems
Factory automation
Machine monitoring
Industrial equipment control

For businesses looking for an Industrial Sensors Supplier UAE, the IF5618 provides a compact and dependable inductive sensing solution for industrial automation systems.
