The IF5616 IFM inductive sensor is a compact M12 proximity sensor with a 2 mm sensing range, PNP normally open output, 10–36 V DC supply and 2 m PVC cable. Its flush-mountable design, IP67 protection and 1000 Hz switching frequency make it suitable for reliable object detection in industrial automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

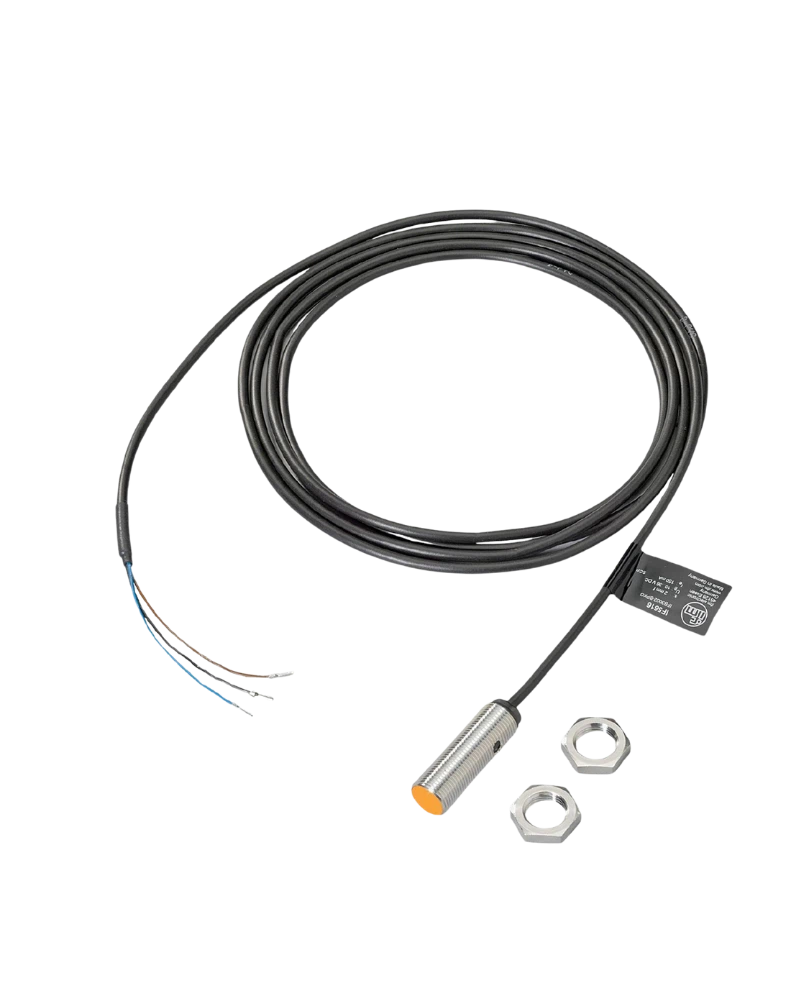

The IF5616 IFM inductive sensor (IFB3002-BPKG/O.SS/IE-KAB) is a compact industrial proximity sensor designed for dependable non-contact detection of metallic objects in automation machinery and production equipment. Its M12 x 1 threaded housing, 2 mm sensing range and flush-mountable construction make it suitable for applications where accurate detection and compact installation are required.
The sensor uses a DC PNP normally open switching output and operates on 10–36 V DC. With a switching frequency of up to 1000 Hz, the IF5616 can support fast detection tasks in automated machinery and material-handling systems. Its IP67-rated housing provides protection against dust and water ingress, supporting reliable operation in demanding industrial environments.
2 mm sensing range
M12 x 1 threaded housing
Flush mountable installation
DC PNP normally open output
10–36 V DC operating voltage
1000 Hz switching frequency
IP67 protection rating
2 m PVC connection cable
Yellow LED switching status indication
Short-circuit protection
Overload protection
Reverse-polarity protection
Compact 36 mm housing
Operating temperature range of -25°C to +80°C
The IF5616 detects metallic targets without physical contact, making it suitable for position sensing, presence detection and machine-control applications. The 2 mm sensing range provides dependable detection where precise proximity monitoring is required.
The sensor operates with a 10–36 V DC supply and provides a PNP normally open output for integration with compatible PLCs, controllers and industrial automation systems. Its switching frequency of up to 1000 Hz supports rapid detection in high-speed machine applications.
The IF5616 features a compact threaded M12 design with IP67 protection, helping protect the sensor against dust and temporary water exposure. Its operating temperature range of -25°C to +80°C makes it suitable for a wide range of industrial environments.
The sensor is supplied with a 2 m PVC cable for direct electrical connection. The integrated yellow LED provides a clear indication of the switching status, helping simplify commissioning, troubleshooting and routine maintenance.
The IF5616 is suitable for:
Machine position detection
Metal object detection
Conveyor systems
Material handling equipment
Assembly machinery
Packaging machines
Production lines
Factory automation systems
Industrial equipment monitoring
Automated machine control
For customers looking for an Industrial Sensors Supplier UAE, the IF5616 provides a compact solution for integrating reliable inductive proximity detection into industrial automation equipment.
The IF5616 is an IFM phase-out article. IFM identifies IF5188 as an alternative article. Compatibility and technical specifications should be checked before replacing the IF5616 with the alternative model.
| Specification | Details |
|---|---|
| Product Model | IF5616 |
| Manufacturer | IFM |
| Part Number | IFB3002-BPKG/O.SS/IE-KAB |
| Product Type | Inductive Sensor |
| Sensor Technology | Inductive Proximity Detection |
| Housing | M12 x 1 threaded housing |
| Housing Length | 36 mm |
| Sensing Range | 2 mm |
| Installation | Flush mountable |
| Output Type | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1000 Hz |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +80°C |
| Connection | 2 m PVC cable |
| Cable Conductors | 3 x 0.14 mm² |
| Status Indicator | Yellow LED |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Housing Material | Brass / coated metal construction |
| Standard | EN 60947-5-2 |
| Product Status | Phase-out article |
| Alternative Article | IF5188 |
