The IF5598 IFA2002-FRKG/US-100-IRF by IFM is a compact M12 inductive proximity sensor for reliable non-contact detection of metallic objects. It features a 2 mm sensing range, selectable PNP/NPN output, programmable normally open/normally closed function, 10–55 V DC operation, 1100 Hz switching frequency and IP67 protection, making it suitable for industrial automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

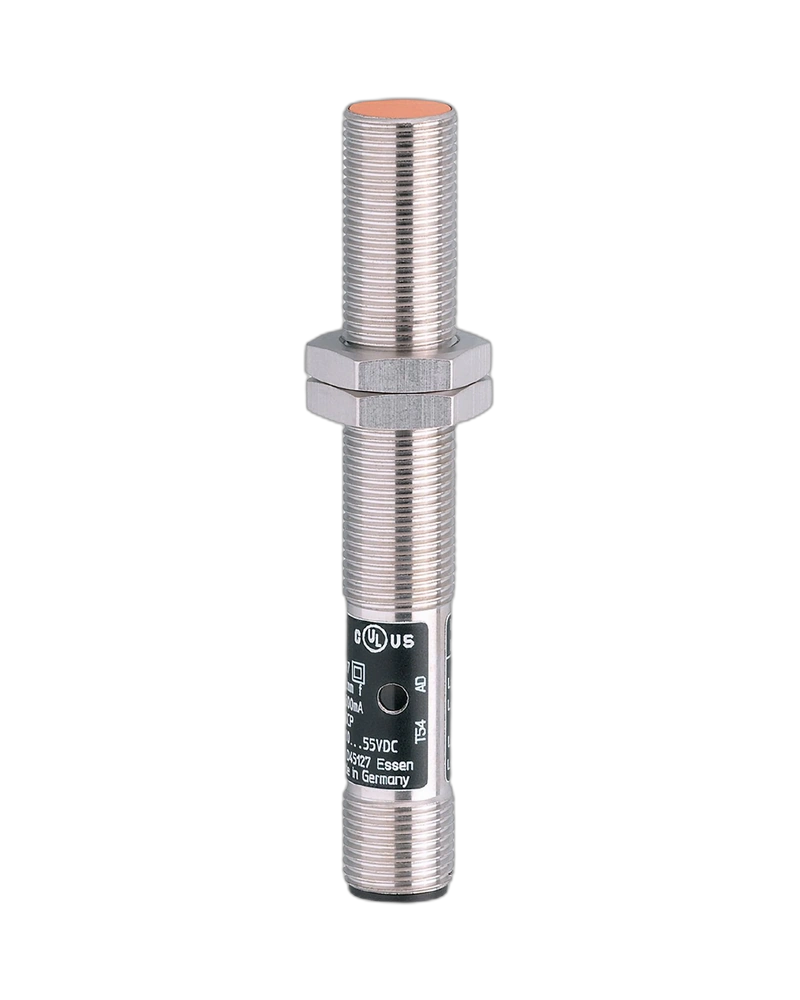

The IF5598 IFA2002-FRKG/US-100-IRF is an IFM inductive sensor designed for dependable detection of metallic objects in industrial automation, machine building and production equipment. Its compact M12 × 1 threaded housing, 2 mm sensing range and flexible electrical configuration allow reliable integration into a wide range of industrial control systems.
2 mm sensing range
PNP/NPN selectable electrical design
Normally open/normally closed output selectable
Two-wire technology
10–55 V DC operating voltage
1100 Hz switching frequency
M12 × 1 threaded housing
Flush-mount installation
83 mm overall length
M12 connector
Metal housing with white-bronze-coated brass construction
IP67 protection rating
Yellow LED switching-status indication
Reverse polarity protection
Short-circuit protection
Overload protection
Suitable for demanding industrial environments
The IF5598 uses inductive sensing technology to detect metallic targets without physical contact. Its 2 mm rated sensing range is suitable for precise presence, position and object-detection applications where compact sensing is required. The sensor is designed for flush installation, helping provide a neat and space-efficient mounting arrangement.
The sensor uses two-wire technology and supports selectable PNP/NPN electrical design. Its output function can be configured as normally open or normally closed, providing flexibility when connecting the sensor to different industrial control and automation circuits.
With a switching frequency of up to 1100 Hz, the IF5598 can handle fast and repetitive detection tasks in automated machinery, production lines and material-handling systems. The sensor has a permanent switching current rating of 300 mA.
The IF5598 features a white-bronze-coated brass housing with a polycarbonate active face and an IP67 protection rating. It is specified for an ambient operating temperature of -25°C to +80°C, making it suitable for demanding industrial environments.
The M12 × 1 threaded design and M12 connector provide practical installation and connection for industrial automation equipment. A yellow LED provides clear switching-status indication, helping operators during installation, commissioning and troubleshooting. Two mounting nuts are supplied with the sensor.
The IF5598 is suitable for:
Metal object detection
Part presence detection
Machine position monitoring
Object counting
Conveyor systems
Production machinery
Material handling equipment
Factory automation
Automated manufacturing equipment
Industrial control systems
For companies sourcing Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE, the IF5598 provides a compact and flexible sensing solution for automated machinery.
| Specification | Details |
|---|---|
| Product Model | IFA2002-FRKG/US-100-IRF |
| IFM Article Number | IF5598 |
| Product Type | Inductive Sensor |
| Sensor Technology | Inductive Proximity Sensor |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Technology | Two-wire |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 mm ±10% |
| Operating Distance | 0–1.6 mm |
| Installation | Flush |
| Housing Design | Threaded, Cylindrical |
| Thread Size | M12 × 1 |
| Dimensions | M12 × 1 / L = 83 mm |
| Housing Material | White-bronze-coated brass |
| Active Face Material | Polycarbonate (PC) |
| Operating Voltage | 10–55 V DC |
| Permanent Switching Current | 300 mA |
| Maximum Voltage Drop | 4.6 V |
| Minimum Load Current | 4 mA |
| Maximum Leakage Current | 0.5 mA |
| Switching Frequency | 1100 Hz |
| Connection | M12 Connector |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +80°C |
| Status Indication | Yellow LED |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10–10% of Sr |
| EMC Standard | EN 60947-5-2 |
| Supplied Accessories | 2 Mounting Nuts |
| Pack Quantity | 1 Piece |
| Application | Industrial Automation / Machine Applications |
