The IF5597 IFM inductive sensor is a compact M12 proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine applications. It features a 4 mm sensing range, selectable PNP/NPN output, programmable normally open or normally closed switching, 10–55 V DC operation, 1500 Hz switching frequency and IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5597 IF-2004-FRKG/PH is an IFM inductive proximity sensor engineered for reliable detection of metallic objects in industrial automation, machine building and factory equipment. Its 4 mm sensing range, selectable PNP/NPN electrical design and programmable normally open/normally closed output function provide flexible integration into different control systems.
4 mm sensing range
PNP/NPN selectable electrical design
Normally open/normally closed output function selectable
10–55 V DC operating voltage
1500 Hz switching frequency
M12 × 1 threaded cylindrical housing
Non-flush mounting
2 m PUR/PVC cable
IP67 protection rating
PBT housing material
Red switching-status LED
Reverse polarity protection
Short-circuit protection
Overload protection
The IF5597 uses inductive sensing technology to detect metallic targets without physical contact. Its 4 mm rated sensing range makes it suitable for presence detection, position monitoring, counting and machine-control applications. The sensor is designed for non-flush mounting and uses an M12 × 1 threaded housing.
The sensor provides a selectable PNP/NPN output design with programmable normally open or normally closed switching. This flexibility allows the IF5597 to be incorporated into a variety of PLC, controller and industrial automation circuits.
With a switching frequency of up to 1500 Hz, the IF5597 is suitable for fast-moving production processes and repetitive object-detection applications. Its 400 mA permanent switching current rating provides practical compatibility with industrial control applications.
The sensor features a PBT threaded housing and IP67 protection, making it suitable for demanding industrial environments where protection against dust and water is required. The specified ambient operating temperature is -25°C to +80°C.

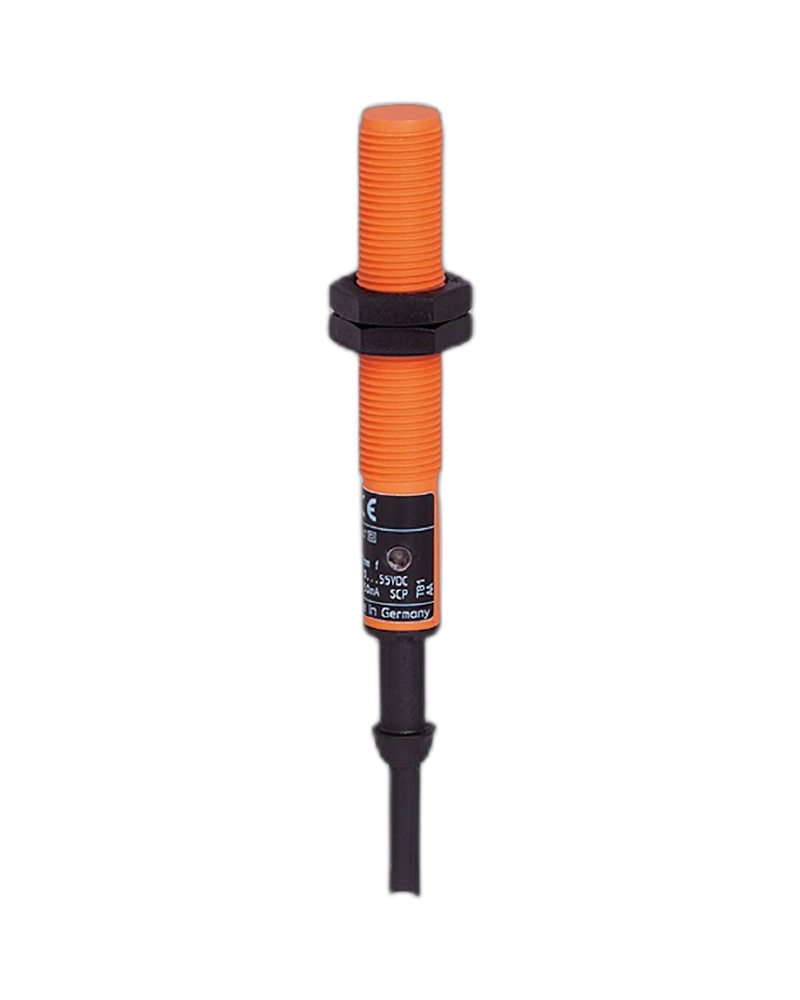

The IF5597 uses a 2 m PUR/PVC cable and has a compact M12 × 1 threaded design with a length of approximately 71 mm. A red LED provides switching-status indication for easier installation, commissioning and troubleshooting. Two lock nuts are supplied with the sensor.
The IF5597 is suitable for:
Metal object detection
Part presence detection
Machine position monitoring
Object counting
Conveyor systems
Production machinery
Material handling equipment
Factory automation
Industrial control systems
Automated manufacturing equipment
For businesses sourcing Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE, the IF5597 provides a flexible and reliable sensing solution for automated machinery.
| Specification | Details |
|---|---|
| Product Model | IF-2004-FRKG/PH |
| IFM Article Number | IF5597 |
| Product Type | Inductive Sensor |
| Sensor Technology | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Real Sensing Range (Sr) | 4 mm ±10% |
| Operating Distance | 0–3.25 mm |
| Electrical Design | PNP/NPN |
| Output Function | Normally Open / Normally Closed, Selectable |
| Operating Voltage | 10–55 V DC |
| Switching Frequency | 1500 Hz |
| Permanent Switching Current | 400 mA |
| Minimum Load Current | 4 mA |
| Maximum Leakage Current | 0.5 mA |
| Maximum Voltage Drop | 4.6 V |
| Installation | Non-flush |
| Housing Design | Threaded, Cylindrical |
| Thread Size | M12 × 1 |
| Housing Material | PBT |
| Dimensions | M12 × 1 / L = 71 mm |
| Connection | 2 m PUR/PVC Cable |
| Cable Cross-Section | 2 × 0.34 mm² |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +80°C |
| Status Indication | 1 × Red LED |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Hysteresis | 1–15% of Sr |
| Switch-Point Drift | -10 to +10% of Sr |
| Protection / EMC Standard | EN 60947-5-2 |
| Supplied Accessories | 2 Lock Nuts |
| Pack Quantity | 1 Piece |
| Application | Industrial Automation / Machine Applications |
