The IF5594 inductive proximity sensor by IFM is a robust M12 sensor designed for reliable non-contact detection of metal objects in industrial automation and factory applications. It provides a 4 mm sensing range, PNP normally open output, M12 connector, stainless-steel construction and IP67 protection for dependable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

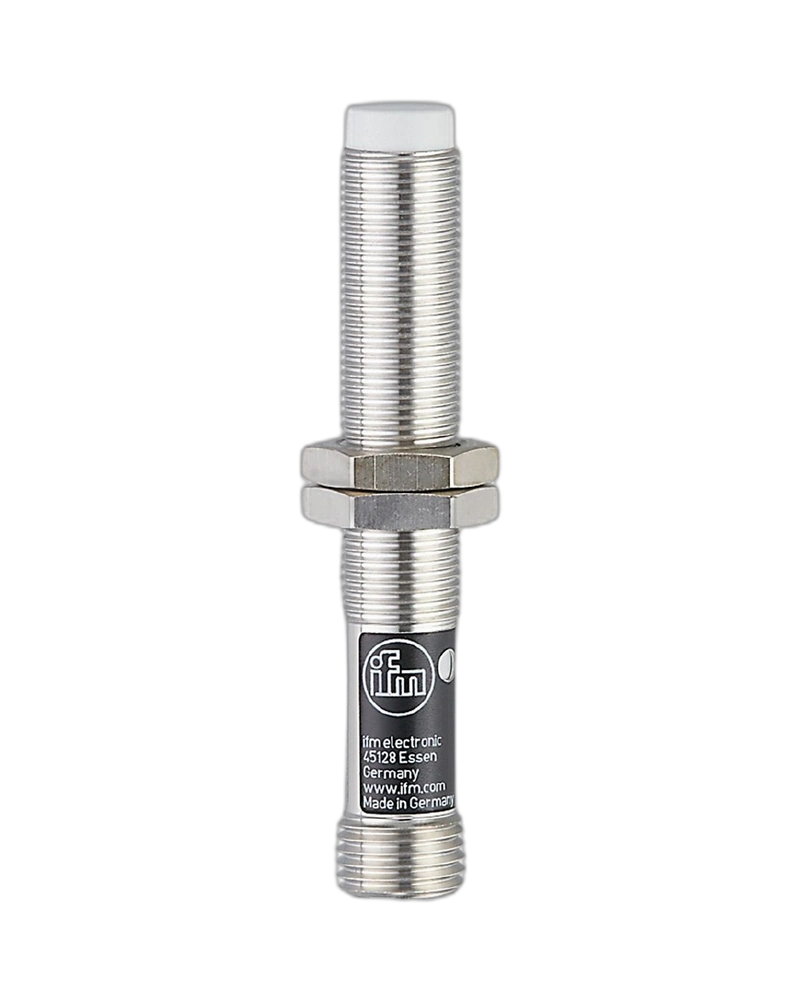

The IF5594 IFA3004-BPKG/V4A/US-100-DPS is an IFM inductive proximity sensor designed for reliable and repeatable detection of metallic objects in industrial automation and factory environments. With a 4 mm sensing range, PNP normally open output, and M12 connector, it provides straightforward integration with automation controllers and industrial control systems.
4 mm sensing range
PNP normally open switching output
M12 x 1 threaded cylindrical design
Non-flush mounting
10 to 36 V DC operating voltage
400 Hz switching frequency
Stainless-steel housing
IP67 protection rating
Yellow LED output status indication
Gold-plated connector contacts
Short-circuit and overload protection
Suitable for industrial applications and factory automation
The IF5594 uses inductive sensing technology to detect metallic targets without physical contact. Its 4 mm rated sensing distance provides dependable object detection for positioning, counting, presence monitoring and machine-control applications. The sensor is designed for non-flush installation and has a cylindrical M12 x 1 threaded housing.
The sensor operates from 10 to 36 V DC and features a PNP normally open output. With a switching frequency of up to 400 Hz, it is suitable for fast and repetitive detection tasks in automated machinery and production equipment.
The IF5594 is designed for demanding industrial environments, featuring a stainless-steel housing and IP67 protection against dust and temporary water immersion. Its operating temperature range is approximately -25°C to +80°C, supporting reliable operation across a broad range of industrial conditions.
The M12 connector provides a practical connection solution for industrial control panels, PLC systems and automation equipment. The sensor also incorporates a yellow LED for clear output-status indication, helping simplify commissioning and troubleshooting.
The IF5594 is suitable for:
Metal object detection
Machine positioning
Part presence detection
Counting applications
Conveyor systems
Production machinery
Factory automation
Material handling equipment
Industrial control systems
Automated manufacturing equipment
For businesses looking for dependable Industrial Sensors and Proximity Sensors Supplier UAE solutions, the IF5594 offers a compact and robust sensing option for industrial automation applications.
| Specification | Details |
|---|---|
| Product Model | IFA3004-BPKG/V4A/US-100-DPS |
| IFM Article Number | IF5594 |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 4 mm |
| Installation | Non-flush |
| Output Function | PNP Normally Open |
| Output Type | PNP |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 400 Hz |
| Connection | M12 Connector |
| Connector Type | M12 x 1 |
| Housing Design | Cylindrical, threaded |
| Housing Material | Stainless Steel |
| Detection Face | PBT |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +80°C |
| Output Status Indication | Yellow LED |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Rated Sensing Distance | 4 mm |
| Real Sensing Range | 0–3.25 mm |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Application | Industrial Applications / Factory Automation |
| Included Accessories | 2 Lock Nuts |
| Pack Quantity | 1 Piece |
