The IFM IF5580 inductive sensor is designed for precise, non-contact detection of metallic objects in industrial automation and machine-building applications. With a 2 mm sensing range, PNP normally open output and flush-mountable M12 x 1 housing, it provides reliable position and presence detection in automated machinery.

Its robust metal housing, high switching frequency and IP67 protection make the IF5580 suitable for demanding industrial environments. The sensor operates on 10–30 V DC and supports switching frequencies of up to 800 Hz, allowing dependable detection in fast-moving automation processes.

Key Features

2 mm sensing range

PNP normally open output

Flush-mountable installation

M12 x 1 threaded housing

80 mm housing length

M12 connector with gold-plated contacts

10–30 V DC operating voltage

800 Hz switching frequency

IP67 protection rating

Robust metal housing

Short-circuit protection

Overload protection

Reverse polarity protection

Yellow LED switching-status indication

Operating temperature from -25°C to +80°C

Product Design & Construction

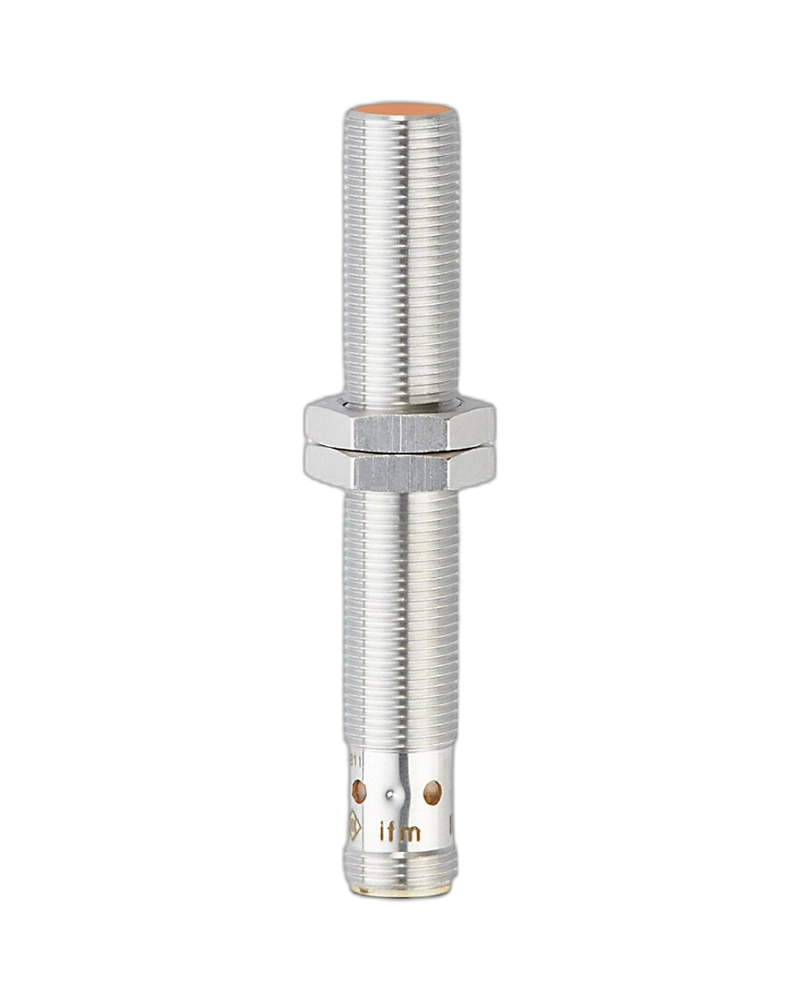

The IF5580 features a compact M12 x 1 threaded metal housing with an approximately 80 mm housing length. The housing is made from white-bronze-plated brass, with a PBT orange active face and PEI LED window. This robust construction is suitable for industrial machinery and factory automation installations.

The sensor is flush mountable, allowing it to be integrated neatly into machine structures while providing reliable metallic-object detection. Its M12 connection with gold-plated contacts supports standardized industrial sensor connectivity.

Sensing & Switching Performance

The IF5580 provides a nominal 2 mm sensing range, with a real sensing range of 2 mm ±10% and an operating distance of approximately 0–1.62 mm. The sensor detects metallic targets without physical contact, making it suitable for accurate machine position and presence monitoring.

Its PNP normally open output switches when a suitable metallic target enters the sensing area. With an 800 Hz switching frequency, the sensor can be used for repeated detection tasks in automated production and machine applications.

Electrical Performance

The IF5580 operates with a 10–30 V DC supply and has a current consumption below 10 mA. The switching output supports a permanent current rating of 200 mA, with a maximum voltage drop of 2.5 V. Integrated short-circuit, overload and reverse-polarity protection help provide dependable operation.

Environmental Protection

The sensor has an IP67 protection rating and an operating temperature range of -25°C to +80°C, making it suitable for demanding industrial environments where protection from dust and moisture is required.

Industrial Applications

The IF5580 is suitable for:

Metal object detection

Machine position detection

Part presence monitoring

Automated assembly equipment

Factory automation machinery

Conveyor systems

Material handling equipment

Machine-tool applications

End-position monitoring

Industrial production equipment

Operational Advantages

Precise 2 mm metal detection

Fast 800 Hz switching frequency

PNP normally open switching output

Flush-mountable M12 design

Robust metal housing

IP67 environmental protection

Wide -25°C to +80°C operating temperature

Integrated electrical protection

LED switching-status indication

The IFM IF5580 inductive sensor is a reliable solution for businesses sourcing Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE. Its compact M12 construction, flush-mountable design, 2 mm sensing range and robust IP67 protection make it well suited to precise machine position and object detection.
