The IFM IF5579 inductive sensor is designed for reliable, non-contact detection of metallic objects in industrial automation, machine building and factory equipment. It provides a 4 mm sensing range, PNP normally open output and non-flush mounting, making it suitable for dependable position, presence and object detection applications.

The sensor features an M12 x 1 threaded housing with an 80 mm length and an M12 connector with gold-plated contacts. Its 10–30 V DC operating voltage, 400 Hz switching frequency and IP67 protection rating support reliable operation in demanding industrial environments.

Key Features

4 mm sensing range

PNP normally open output

Non-flush mounting

M12 x 1 threaded housing

80 mm housing length

M12 connector with gold-plated contacts

10–30 V DC operating voltage

400 Hz switching frequency

IP67 protection rating

Short-circuit protection

Overload protection

Reverse polarity protection

Yellow LED switching-status indication

Operating temperature from -25°C to +80°C

Product Design & Construction

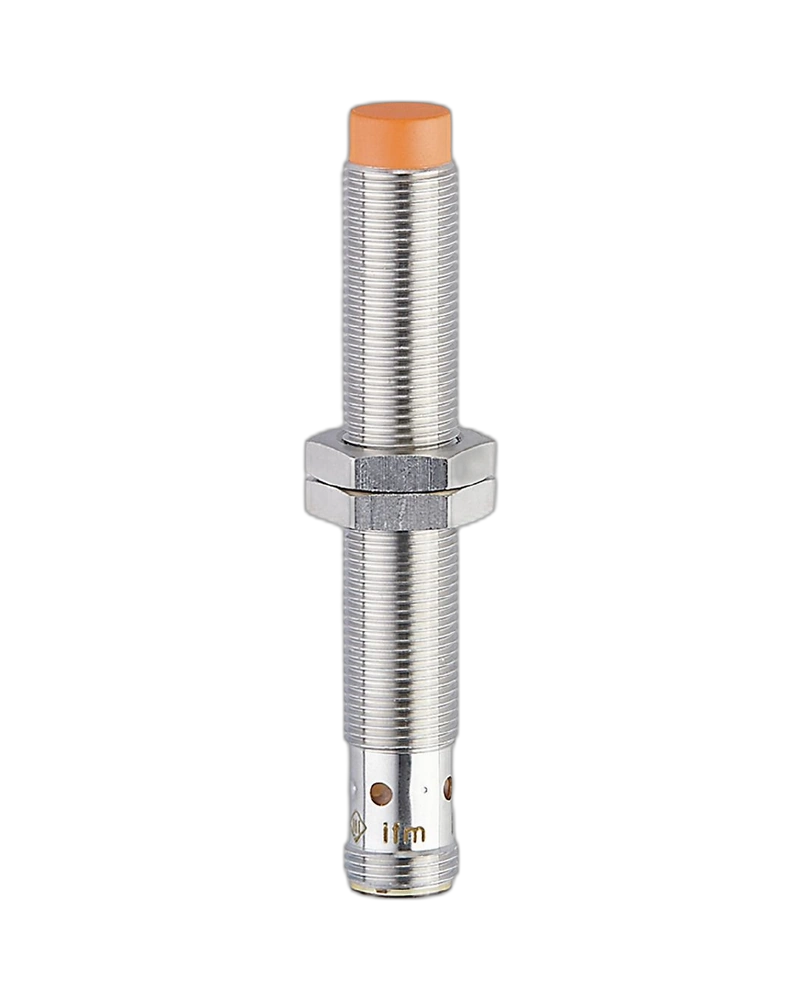

The IF5579 uses a M12 x 1 cylindrical threaded housing with an 80 mm length. The housing is made from white-bronze-plated brass, while the active face is made from orange PBT. The robust construction is suited to industrial machinery and factory automation installations.

The sensor uses an M12 connector with gold-plated contacts, providing a standardized connection for integration with industrial control systems and sensor cabling.

Sensing & Switching Performance

The IF5579 has a nominal 4 mm sensing range and a real sensing range of 4 mm ±10%. Its operating distance is specified at approximately 0 to 3.24/3.25 mm, depending on the referenced datasheet version. The sensor is designed for non-flush installation and detects metallic targets without physical contact.

The PNP normally open output provides a positive switching signal when a suitable metallic target is detected. With a switching frequency of 400 Hz, the sensor is suitable for repeated detection tasks in automated machinery and production systems.

Electrical Protection

The sensor operates on 10–30 V DC and has a maximum continuous switching output current of 200 mA. Integrated short-circuit, overload and reverse-polarity protection help protect the sensor and connected control equipment during normal industrial operation.

Environmental Protection

With an IP67 protection rating and an operating temperature range of -25°C to +80°C, the IF5579 is designed for use in industrial environments where equipment may be exposed to dust, moisture and temperature variation.

Industrial Applications

The IF5579 is suitable for:

Metal object detection

Machine position monitoring

Part presence detection

Automated assembly equipment

Factory automation machinery

Conveyor systems

Material handling equipment

Part counting applications

Machine-tool applications

Position and end-position monitoring

Operational Advantages

Reliable non-contact metal detection

4 mm sensing range

Fast 400 Hz switching frequency

PNP normally open output

Standard M12 connection

Robust metal housing

IP67 environmental protection

Wide operating temperature range

Integrated electrical protection

The IFM IF5579 inductive sensor provides dependable metallic-object detection for industrial automation and machine-building applications. Its 4 mm sensing range, PNP normally open output, M12 connection, non-flush mounting and IP67 protection make it a practical choice for industrial sensing and factory automation systems.
