The IF5545 IFB3004-APKG/US-104 is a reliable inductive proximity sensor designed for accurate, non-contact detection of metallic objects in industrial automation applications. Its compact cylindrical design and dependable switching performance make it suitable for machine positioning, object detection, counting, and automated control systems. An excellent choice for businesses looking for an Industrial Sensors Supplier UAE for reliable factory automation components.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

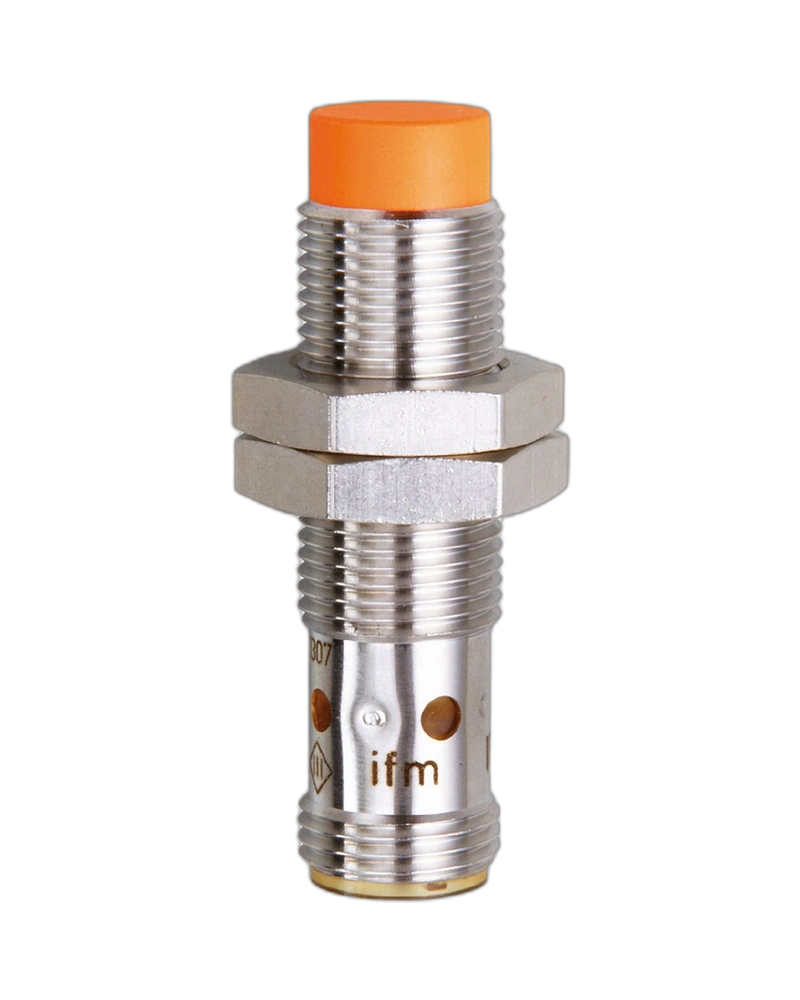

The IF5545 IFB3004-APKG/US-104 is an inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation and machine control applications. Its compact M12 x 1 threaded housing makes it suitable for machine installations where space is limited, while the 4 mm sensing range provides dependable detection of metallic targets.
The sensor features a PNP normally closed output, 10–30 V DC operating voltage and switching frequency up to 1500 Hz, making it suitable for fast and repetitive detection tasks in automated machinery. With IP67 protection and a robust metal housing, the IF5545 is designed for demanding industrial environments.
It is a practical choice for businesses looking for Industrial Sensors Supplier UAE products for factory automation, machine building, production equipment and industrial control systems.
4 mm sensing range
Non-flush installation
PNP normally closed output
10–30 V DC operating voltage
1500 Hz switching frequency
M12 x 1 threaded housing
45 mm housing length
M12 connector
IP67 protection
Robust metal housing
-25 °C to +80 °C operating temperature
Short-circuit protection
Overload protection
Suitable for metallic target detection
Suitable for industrial automation applications
The IF5545 features an M12 x 1 threaded housing with a compact 45 mm length. This design allows the sensor to be integrated into automated machinery and industrial equipment where installation space is restricted.
The inductive sensing principle enables non-contact detection of metallic objects without physical contact. This makes the sensor suitable for repetitive applications such as component presence detection, machine positioning, object monitoring and end-position sensing.
With a switching frequency of up to 1500 Hz, the IF5545 is suitable for applications requiring frequent and rapid object detection. Its PNP normally closed output can be connected to compatible PLC inputs and industrial control systems.
The robust construction and IP67 protection make the sensor suitable for industrial environments. Its operating temperature range of -25 °C to +80 °C supports reliable operation across a broad range of machine and factory applications.
Machine position monitoring
Metal component detection
Object presence detection
Conveyor systems
Assembly machinery
Production equipment
Material handling systems
Component counting
End-position detection
Factory automation systems
Non-contact detection reduces mechanical wear
Compact construction supports space-restricted installations
Fast switching supports high-speed automation
IP67 protection for industrial environments
Reliable metallic object detection
M12 connection for convenient installation
Suitable for machine automation and industrial control
The IF5545 IFB3004-APKG/US-104 provides dependable inductive proximity detection for industrial machinery, factory automation and machine control applications. Its compact construction, 4 mm sensing range, high switching frequency and IP67 protection make it a reliable component for Industrial Automation UAE applications.
| Specification | Details |
| Product Code | IF5545 |
| Model | IFB3004-APKG/US-104 |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Principle | Inductive |
| Sensing Range | 4 mm |
| Installation | Non-flush |
| Output Type | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Connection | M12 connector |
| Thread | M12 x 1 |
| Housing Length | 45 mm |
| Housing Material | Metal |
