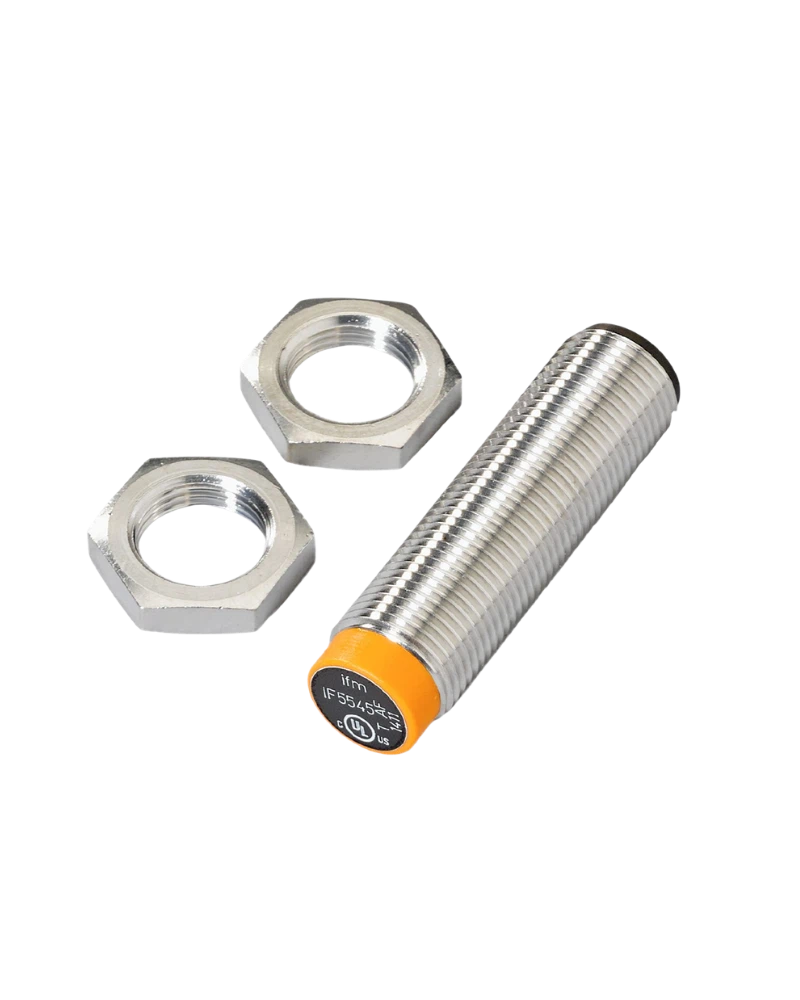

The IFM IF5544 inductive sensor (IFB3004-ANKG/US-100-DNS) is designed for dependable metallic object detection in industrial automation, production machinery, and factory equipment. Its compact M12 × 1 threaded housing and short 43 mm body make it suitable for applications where installation space is limited.

The sensor provides a 4 mm nominal sensing range and uses an NPN normally open output for reliable integration with industrial control systems. With a switching frequency of up to 1.4 kHz, the IF5544 is suitable for repetitive detection tasks such as position monitoring, part presence detection, counting, and automated machine control.

Key Features

IFM IF5544 inductive proximity sensor

Model: IFB3004-ANKG/US-100-DNS

4 mm nominal sensing range

Real sensing range: 4 ± 10%

Operating distance: 0–3.25 mm

NPN electrical design

Normally open output

10–36 V DC operating voltage

1.4 kHz switching frequency

250 mA permanent switching current

M12 × 1 threaded housing

43 mm housing length

Non-flush mounting

M12 connector connection

Brass housing with white-bronze coating

Polycarbonate sensing face

IP67 protection rating

Yellow LED switching-status indication

Reverse-polarity protection

Short-circuit protection

Overload protection

Suitable for non-contact metallic object detection

Suitable for industrial automation and factory automation applications

Compact Industrial Design

The IF5544 features a threaded M12 × 1 housing with a 43 mm overall length. Its compact construction makes it suitable for installation on industrial machines and automated equipment where available space around the sensing point is limited.

Reliable Metallic Object Detection

The inductive sensing principle enables non-contact detection of metallic targets. With a 4 mm sensing range, the sensor can be used for detecting the presence, position, movement, or passage of metal components in automated systems.

Fast Switching Performance

With a switching frequency of up to 1.4 kHz, the IF5544 supports repetitive sensing operations in production machinery, conveyor systems, and automated handling equipment. This makes it suitable for applications requiring frequent and consistent object detection.

NPN Normally Open Output

The sensor uses an NPN normally open switching output, allowing it to be integrated with compatible industrial controllers and automation circuits. The output supports a permanent current rating of up to 250 mA.

Robust Industrial Protection

The IF5544 provides IP67 protection and operates across an ambient temperature range of -25°C to +80°C. Reverse-polarity, short-circuit, and overload protection help support reliable operation in industrial environments.

Industrial Applications

The IF5544 is suitable for:

Machine position monitoring

Metal part detection

Component presence detection

Conveyor systems

Automated production lines

Counting applications

Position verification

Material handling equipment

Factory automation

Industrial machinery

The IF5544 is a practical choice for businesses looking for Industrial Sensors and Proximity Sensors for reliable factory automation. Its 4 mm sensing range, fast switching, compact M12 design, and IP67 protection make it suitable for integration into Industrial Automation Components UAE and industrial equipment.
