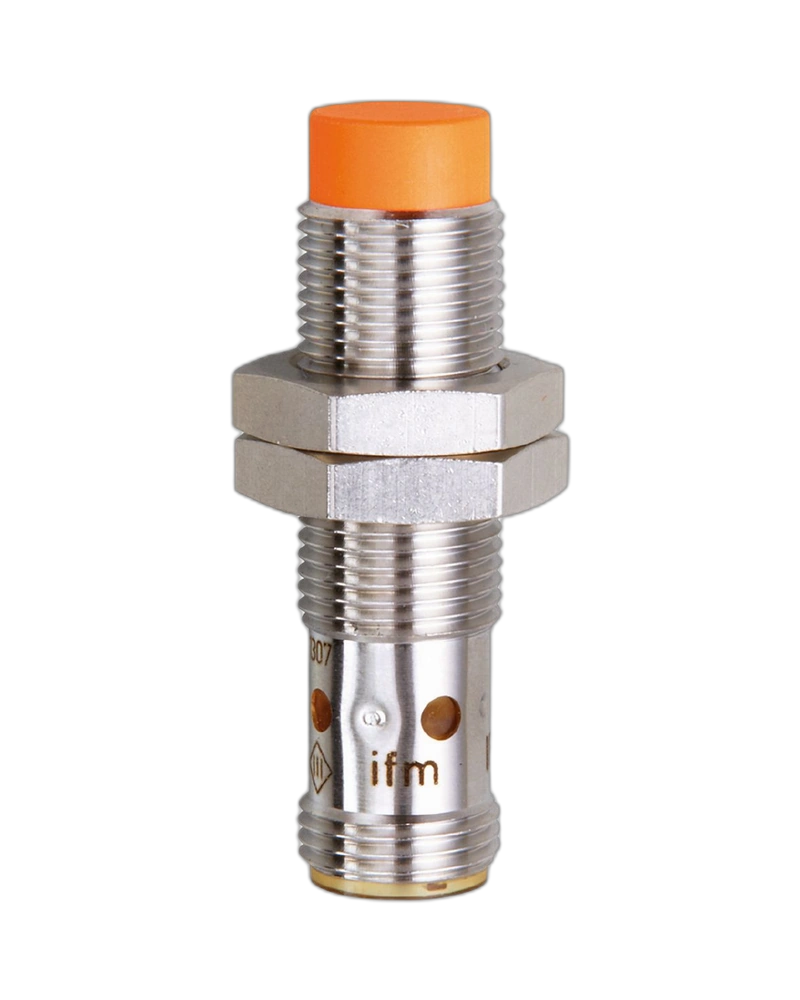

The IF5539 Inductive Sensor provides reliable non-contact metal detection for industrial automation and production machinery. It offers a 4 mm sensing range, PNP normally open output, and high switching frequency. Its robust M12 housing is designed for demanding factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5539 is designed for accurate position and metal object detection in industrial automation systems. Its compact housing is suitable for applications where installation space is limited while maintaining reliable sensing performance.
The sensor provides a 4 mm sensing range and 1500 Hz switching frequency, supporting fast detection in automated production processes. It can be connected to PLCs and controllers for machine monitoring and process control.
This makes it suitable for Industrial Automation UAE, Industrial Equipment in UAE, and factory automation applications requiring reliable proximity sensing.
Ideal for factory automation, conveyors, packaging machines, assembly equipment, machine tools, material handling, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5539 |
| Part Number | IFB3004-BPKG/US-104 |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 1500 Hz |
| Housing | Brass, white-bronze coated |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | M12 connector |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
