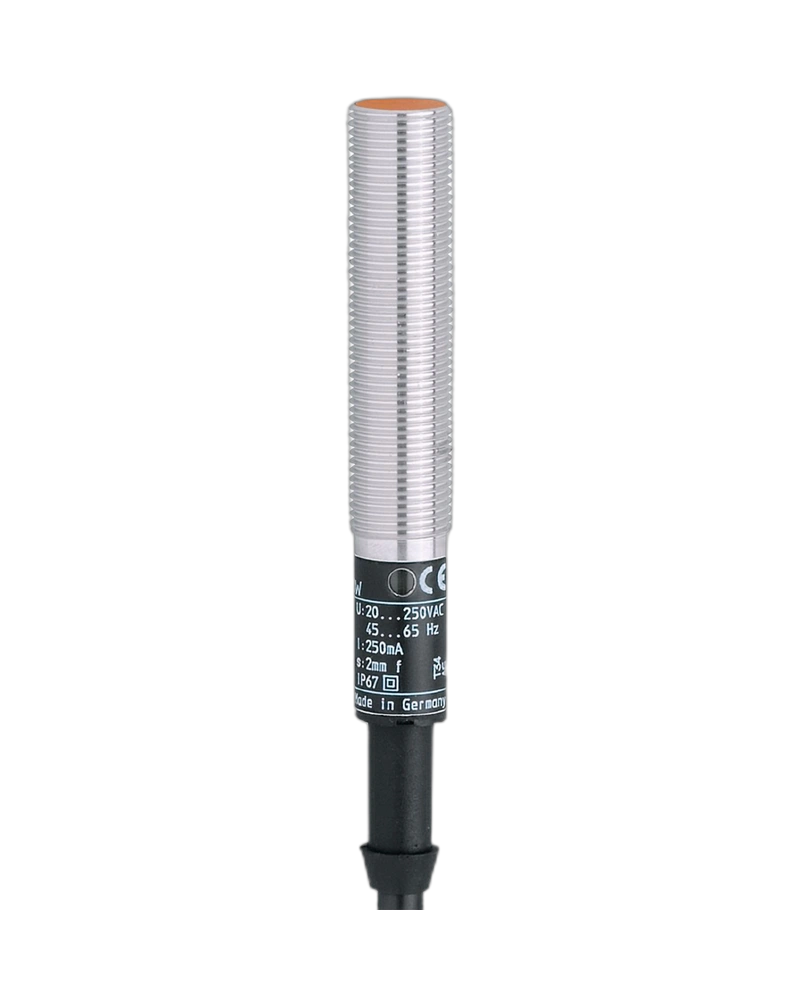

The IF5395 Inductive Sensor provides precise non-contact detection of metal objects in industrial automation systems. It offers a 2 mm sensing range, PNP normally open output, and 6 m cable connection. Its V4A stainless-steel housing supports reliable operation in demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5395 is a compact inductive proximity sensor designed for accurate metal detection and machine position monitoring. It is suitable for automated production systems where reliable sensing is required in a compact installation area.
With a 2 mm sensing range and PNP normally open output, the sensor can detect metal components and provide reliable switching signals to automation controllers. Its 800 Hz switching frequency supports fast detection in automated processes.
The V4A stainless-steel housing provides robust mechanical construction, while IP67 protection supports operation in industrial environments. The 6 m cable provides additional flexibility for machine and production-line installation.
Suitable for factory automation, machine tools, assembly systems, conveyors, packaging machinery, production equipment, material handling, and position monitoring.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5395 |
| Part Number | IFA3002-BPKG/V4A/6M |
| Sensing Range | 2 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 800 Hz |
| Housing | Stainless Steel V4A |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | 6 m cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
