The IF5350 Inductive Sensor provides accurate non-contact metal detection for industrial machinery and automation systems. It offers a 4 mm sensing range, PNP normally closed output, and 6 m cable for flexible installation. The sensor is designed for reliable performance in demanding factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

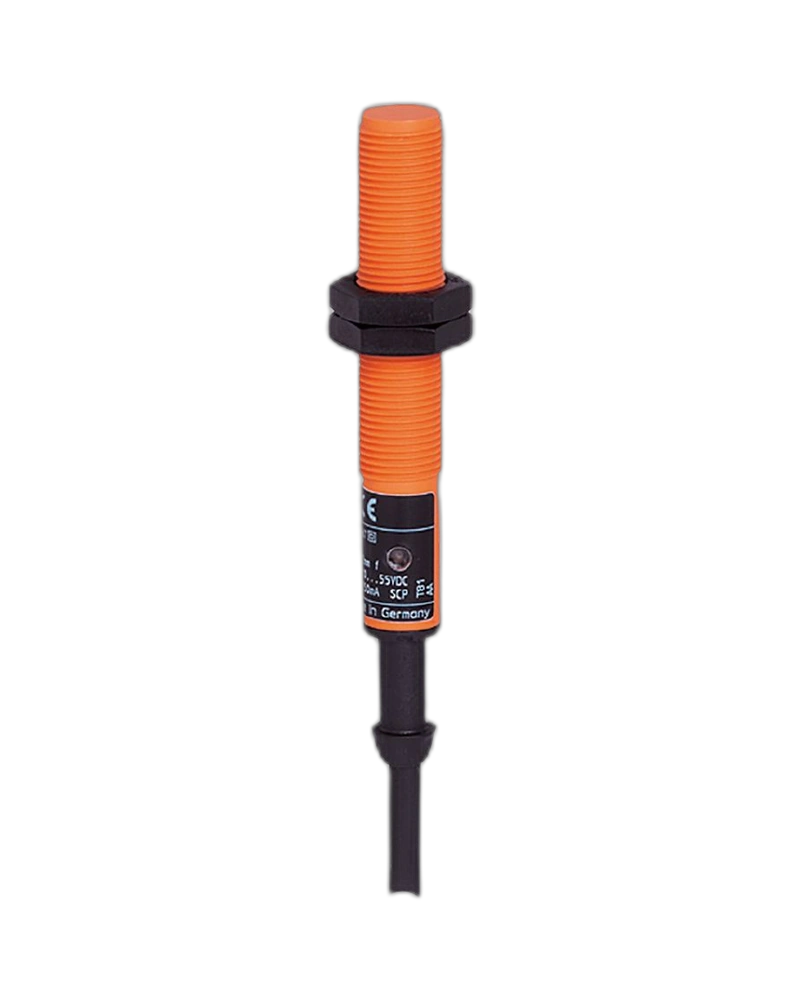

The IF5350 is a compact inductive proximity sensor developed for reliable detection of metal components in automated machinery. It supports machine position monitoring, object detection, and process control applications.
The sensor provides a 4 mm sensing range and PNP normally closed output, making it suitable for integration with PLCs and industrial controllers. Its 6 m PVC cable allows convenient installation on machines and production equipment where extended cable length is required.
The M12 threaded design, IP67 protection, and wide temperature range provide reliable operation in industrial environments. It is suitable for Industrial Equipment & Supplies in UAE and automated production systems.
Ideal for conveyor systems, packaging machines, machine tools, assembly equipment, factory automation, material handling, and production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5350 |
| Part Number | IF-3004-APKG/6M |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Closed |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 400 Hz |
| Housing | PBT |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | 6 m PVC cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
