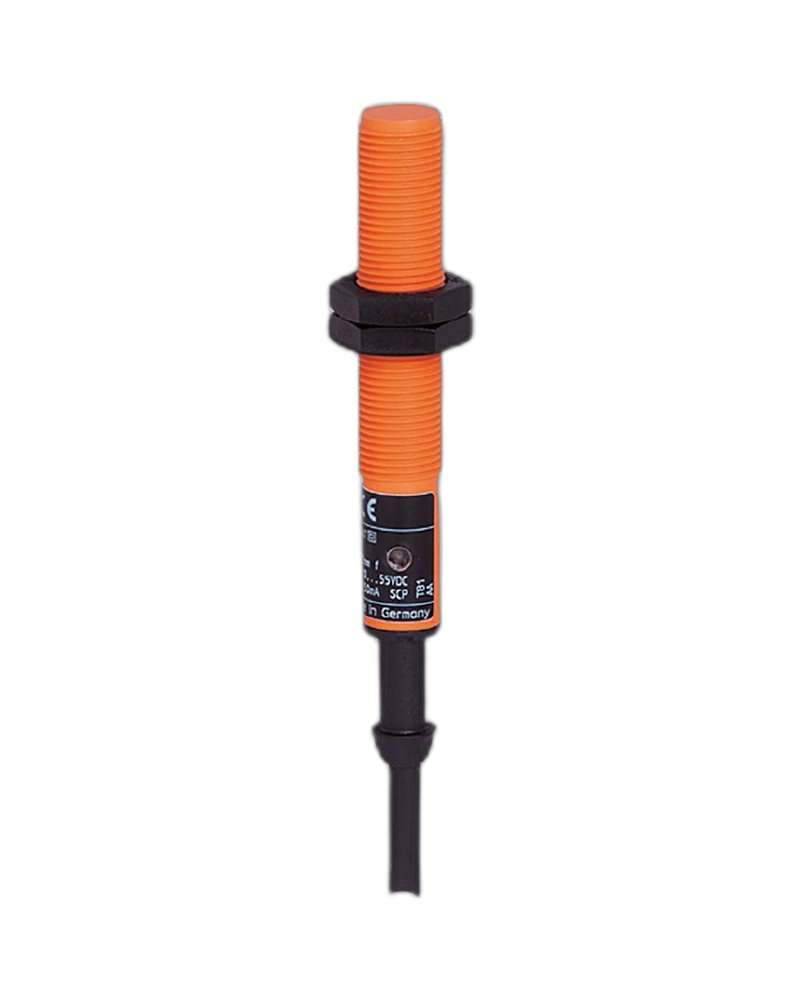

The IF5347 Inductive Sensor is designed for accurate non-contact metal detection in industrial automation applications. It provides a 4 mm sensing range with PNP normally open output and a long 10 m cable. The robust M12 construction supports reliable operation on machines and production lines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5347 provides reliable proximity sensing for industrial machines, conveyors, production equipment, and automated control systems. It detects metal objects without physical contact, helping improve machine monitoring and process automation.
Its 4 mm sensing range and PNP normally open output enable dependable object and position detection. The 10 m PVC cable is particularly useful for installations where the sensor is positioned away from the control panel or automation controller.
With an M12 threaded housing and IP67 protection, the sensor is suitable for demanding factory environments. It can be integrated into Industrial Automation Systems in UAE for reliable machine monitoring and production control.
Ideal for production lines, conveyors, packaging machines, assembly systems, machine tools, material handling, and automated industrial equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5347 |
| Part Number | IF-3004-BPKG/10M |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 400 Hz |
| Housing | PBT |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | 10 m PVC cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
