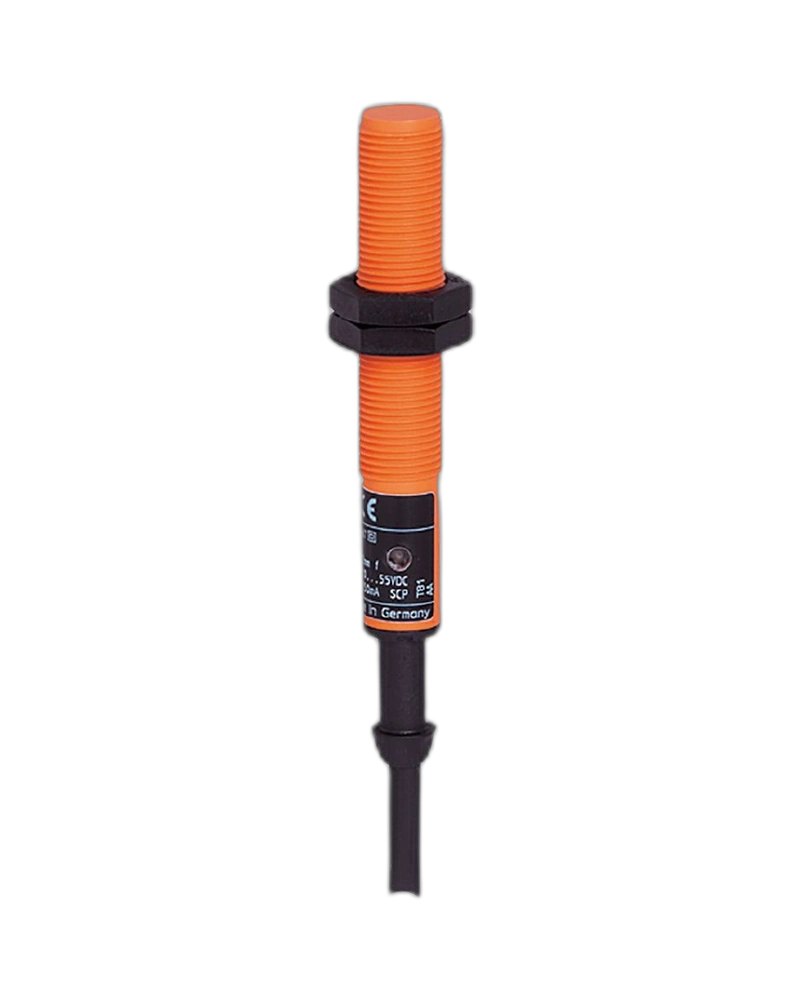

The IF5346 Inductive Sensor provides dependable non-contact metal detection for industrial automation applications. It offers a 4 mm sensing range, PNP normally open output, and a 6 m cable connection. Its compact M12 housing and IP67 protection support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5346 is a compact inductive proximity sensor designed for detecting metal objects without physical contact. It is suitable for machine position monitoring, conveyor automation, production equipment, and industrial control systems.
The sensor uses a 4 mm sensing range with a PNP normally open output, allowing simple integration with PLCs and automation controllers. Its 6 m PVC cable provides additional flexibility when installing sensors on larger machines and production lines.
The M12 threaded housing and IP67 protection help the sensor perform reliably in industrial environments. It is a practical solution for Industrial Sensors and factory automation applications requiring stable object detection.
Suitable for conveyor systems, factory automation, machine tools, assembly equipment, packaging machinery, material handling systems, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5346 |
| Part Number | IF-3004-BPKG/6M |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 400 Hz |
| Housing | PBT |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | 6 m PVC cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
