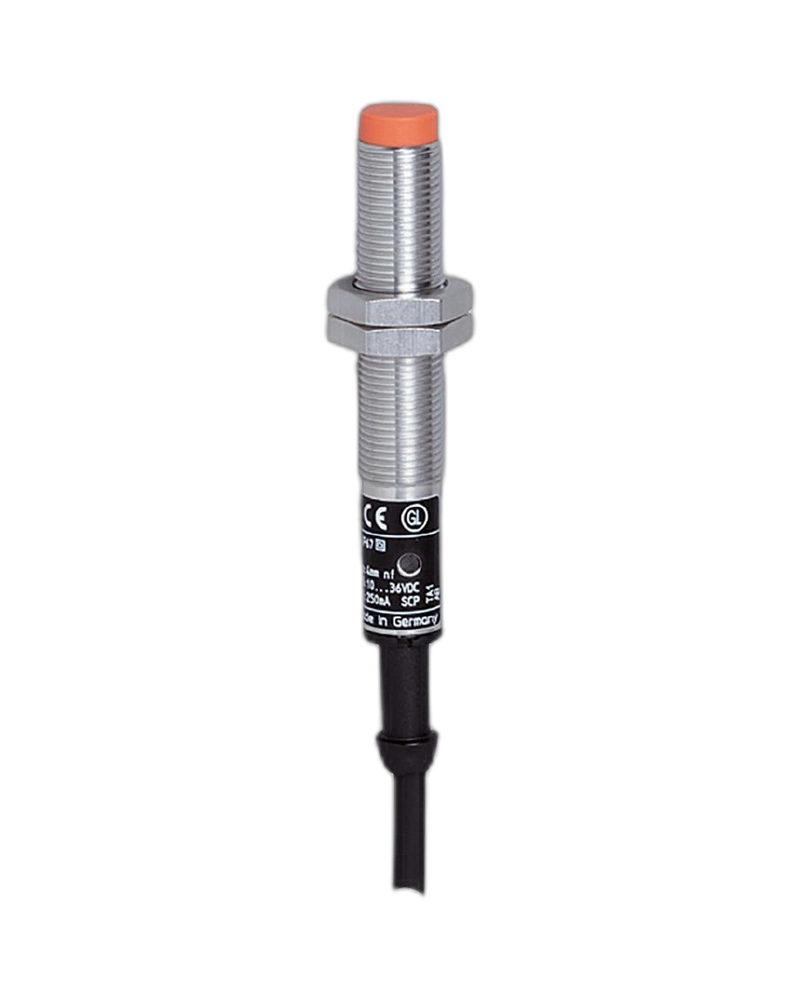

The IF5345 Inductive Sensor provides reliable non-contact detection of metal objects in industrial automation systems. With a 4 mm sensing range and PNP normally open output, it supports accurate machine position and object detection. Its compact M12 design and IP67 protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5345 Inductive Sensor is designed for reliable metal object detection in factory automation, machinery, conveyors, and production equipment. It provides stable sensing performance for position monitoring, object counting, and automated machine control.
With a 4 mm sensing range, M12 threaded housing, and non-flush mounting design, the sensor can be easily installed in industrial applications. Its PNP normally open output allows convenient connection with PLCs and automation controllers.
The IP67 protection rating and wide operating temperature range support dependable operation in industrial environments. The sensor is suitable for Industrial Automation UAE applications requiring accurate and repeatable proximity detection.
Ideal for factory automation, conveyor systems, machine tools, assembly machines, packaging equipment, material handling, position detection, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5345 |
| Part Number | IF-3004-BPKG |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 400 Hz |
| Housing | PBT |
| Thread | M12 x 1 |
| Mounting | Non-flush |
| Connection | 2 m PVC cable |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +80 °C |
