Robust 4 mm NPN inductive proximity sensor for reliable metal detection, machine position sensing, and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

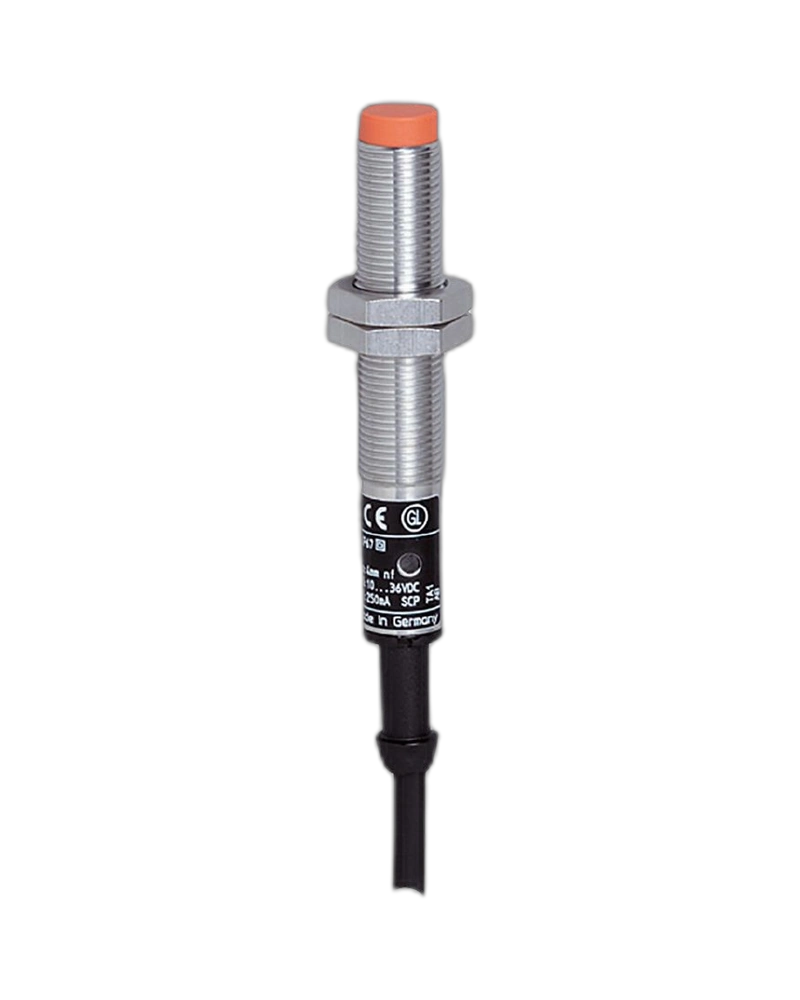

The IF5337 Inductive Sensor is designed for dependable non-contact metal detection in automated machinery and industrial production systems. Its M12 threaded construction and 4 mm sensing range provide reliable detection for machine position and object monitoring.
The NPN normally open output, 400 Hz switching frequency, and IP67 protection support stable operation in industrial environments. It is suitable for integration with machine control and automation systems.
• 4 mm sensing range
• NPN normally open output
• Reliable metal object detection
• Non-flush mounting design
• 400 Hz switching frequency
• Robust metal housing
• IP67 protection
• Suitable for machine position detection
Ideal for factory automation, conveyor systems, assembly machinery, packaging equipment, material handling, machine tools, position detection, object monitoring, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Model | IF5337 |
| Type | IFA3004-ANKG |
| Sensing Range | 4 mm |
| Electrical Design | DC NPN |
| Output Function | Normally Open |
| Mounting | Non-Flush Mountable |
| Thread | M12 x 1 |
| Cable Length | 2 m |
| Switching Frequency | 400 Hz |
| Operating Voltage | 10–36 V DC |
| Protection Rating | IP67 |
| Housing | Brass, White Bronze Coated |
| Connection | PVC Cable |
