Reliable NPN inductive proximity sensor for accurate metal detection, position sensing, and automated machine monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

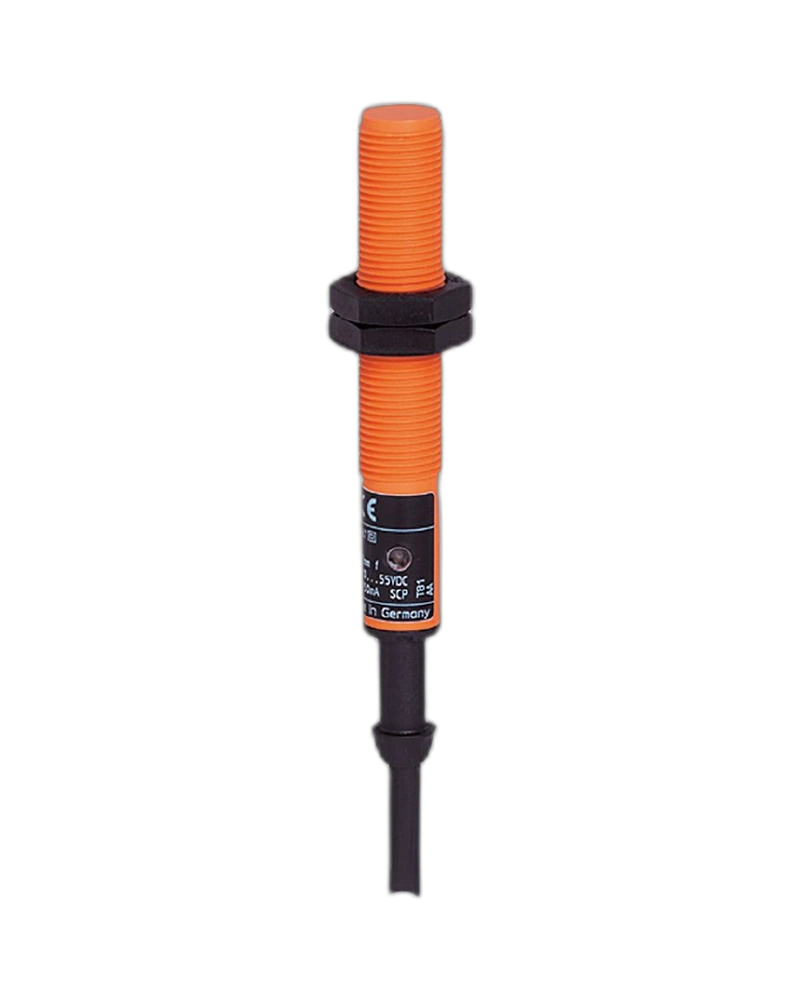

The IF5321 Inductive Sensor is designed for dependable non-contact metal detection in industrial automation applications. Its compact M12 threaded housing and 2 mm sensing range provide reliable sensing for machinery, conveyors, and production systems.
With an NPN normally open output, 800 Hz switching frequency, and IP67 protection, the sensor supports reliable operation in demanding industrial environments and easy integration with machine control systems.
• Accurate non-contact metal detection
• 2 mm sensing range
• NPN normally open output
• Compact M12 threaded design
• Flush-mountable construction
• 800 Hz switching frequency
• IP67 protection
• Easy PLC and controller integration
Ideal for factory automation, conveyor systems, assembly machines, packaging equipment, material handling, machine tools, position detection, object counting, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Model | IF5321 |
| Type | IF-3002-ANKG |
| Sensing Range | 2 mm |
| Electrical Design | DC NPN |
| Output Function | Normally Open |
| Mounting | Flush Mountable |
| Thread | M12 x 1 |
| Cable Length | 2 m |
| Switching Frequency | 800 Hz |
| Operating Voltage | 10–36 V DC |
| Protection Rating | IP67 |
| Housing | PBT |
| Connection | PVC Cable |
