Compact NPN inductive proximity sensor designed for reliable metal detection and position monitoring in industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

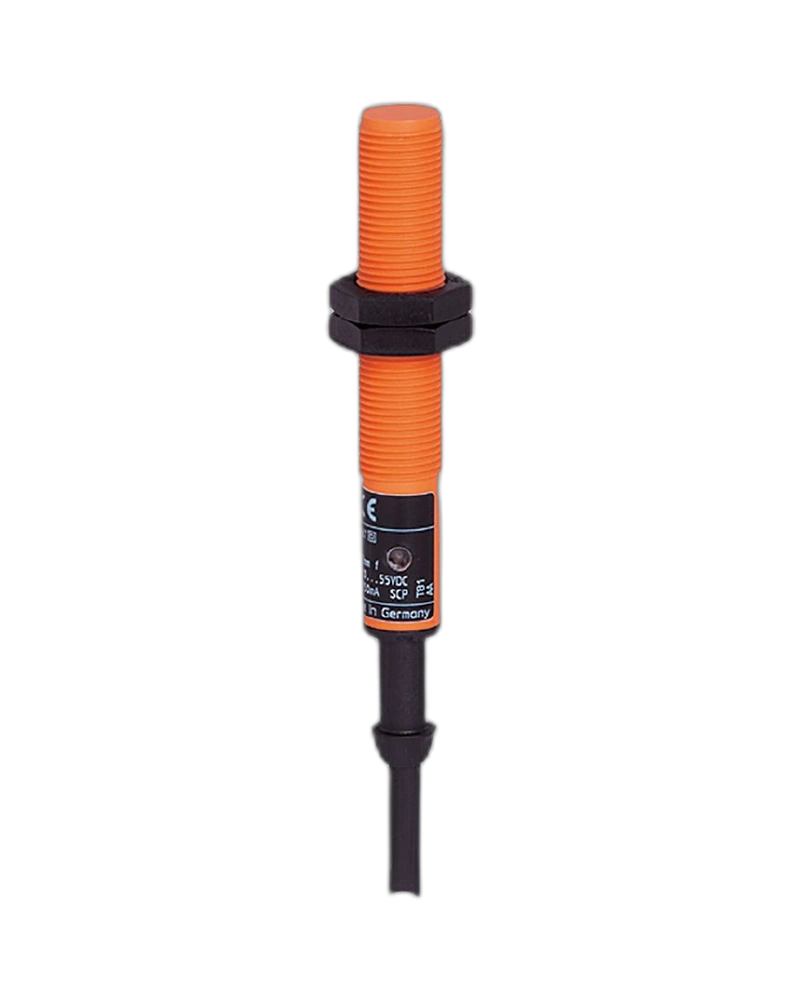

The IF5317 Inductive Sensor provides dependable non-contact detection of metal objects in automated machinery and production equipment. Its M12 threaded construction and 2 mm sensing range make it suitable for precise detection in compact installation areas.
The sensor features an NPN normally closed output and can be integrated into machine control systems, PLCs, conveyors, and automated production equipment for reliable object and position monitoring.
• Reliable non-contact metal detection
• 2 mm sensing range
• NPN normally closed output
• Compact M12 threaded design
• Flush-mountable installation
• 800 Hz switching frequency
• IP67 protection
• Suitable for automated machine control
Suitable for factory automation, conveyor systems, assembly machinery, packaging equipment, machine tools, material handling, object detection, position sensing, and production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Model | IF5317 |
| Type | IF-3002-APKG |
| Sensing Range | 2 mm |
| Electrical Design | DC PNP |
| Output Function | Normally Closed |
| Mounting | Flush Mountable |
| Thread | M12 x 1 |
| Cable Connection | 2 m Cable |
| Switching Frequency | 800 Hz |
| Operating Voltage | 10–36 V DC |
| Protection Rating | IP67 |
| Housing | PBT |
| Connection | PVC Cable |
