Reliable NPN inductive proximity sensor for non-contact metal detection, position sensing, and automated machine monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

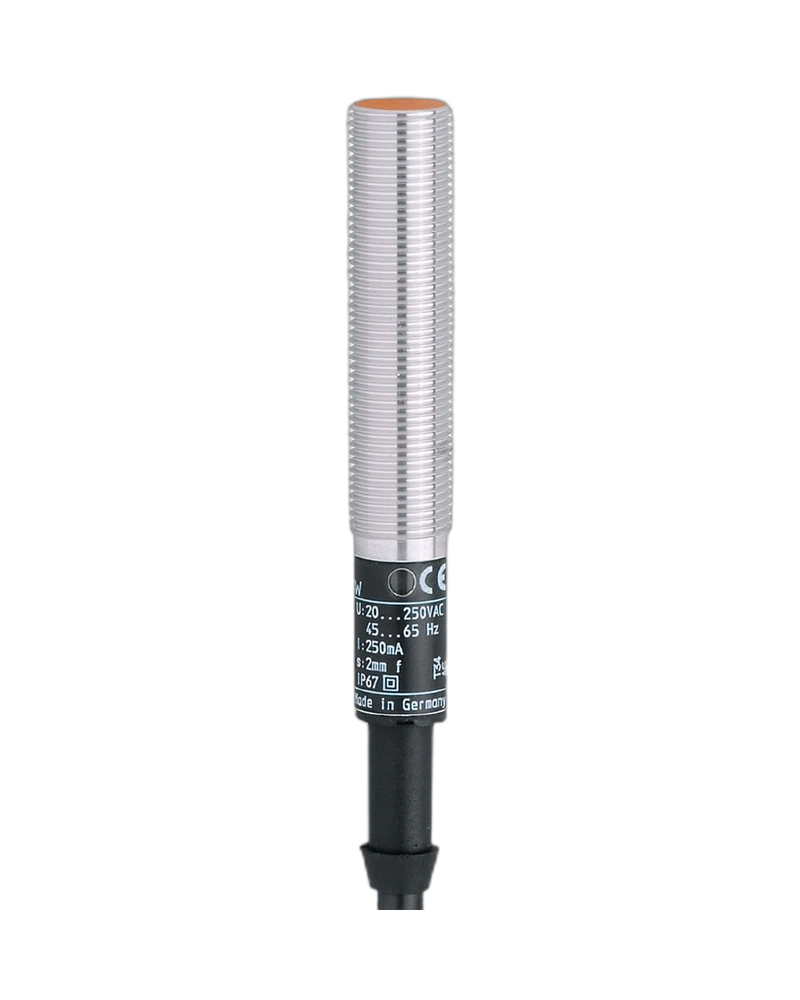

The IF5305 Inductive Sensor provides reliable non-contact detection of metal objects in industrial machinery and automated production systems. Its compact M12 threaded housing supports accurate sensing while allowing easy installation in factory automation equipment.
Designed with a 2 mm sensing range and NPN normally open output, the sensor can be used for machine position detection, object monitoring, and automated control applications where consistent sensing performance is required.
• Accurate non-contact metal detection
• 2 mm sensing range
• NPN normally open output
• Compact M12 threaded construction
• Flush-mountable installation
• Fast 800 Hz switching frequency
• Reliable machine position sensing
• Easy integration with control systems
Ideal for factory automation, conveyor systems, machine tools, assembly machinery, packaging equipment, material handling, position detection, object counting, and automated production systems.
| Specification | Details |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Model | IF5305 |
| Type | IFA3002-ANKG |
| Sensing Range | 2 mm |
| Electrical Design | DC NPN |
| Output Function | Normally Open |
| Mounting | Flush Mountable |
| Thread | M12 x 1 |
| Cable Length | 2 m |
| Switching Frequency | 800 Hz |
| Operating Voltage | 10–36 V DC |
| Protection Rating | IP67 |
| Housing | Metal |
| Connection | PVC Cable |
