Compact M12 inductive sensor designed for reliable non-contact metal detection and accurate position monitoring in automated industrial systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

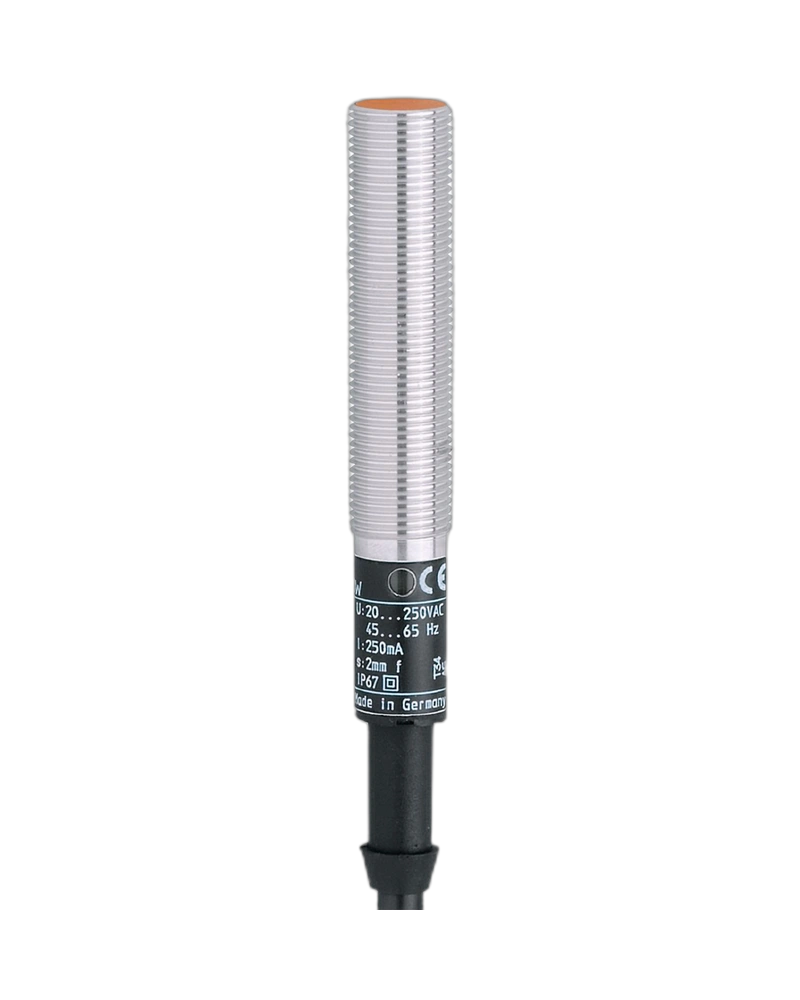

The IF5301 Inductive Sensor is designed for reliable metal object detection in industrial automation and machine control applications. Its compact threaded construction makes it suitable for installations where dependable sensing and efficient space utilization are important.
With a 2 mm sensing range and PNP normally closed output, the sensor can be integrated with PLCs, controllers, conveyors, and automated production equipment for consistent monitoring and machine operation.
• Reliable non-contact metal detection
• 2 mm sensing range
• Compact M12 design
• PNP normally closed output
• Flush-mountable installation
• Fast 800 Hz switching frequency
• Easy integration with automation systems
• Suitable for machine position monitoring
Suitable for factory automation, conveyor systems, packaging machinery, assembly equipment, machine tools, material handling, position detection, and automated production lines.
| Specification | Details |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Model | IF5301 |
| Type | IFA3002-APKG |
| Sensing Range | 2 mm |
| Electrical Design | DC PNP |
| Output Function | Normally Closed |
| Mounting | Flush Mountable |
| Thread | M12 x 1 |
| Cable Length | 2 m |
| Switching Frequency | 800 Hz |
| Operating Voltage | 10–36 V DC |
| Protection Rating | IP67 |
| Housing | Metal |
| Connection | Cable |
