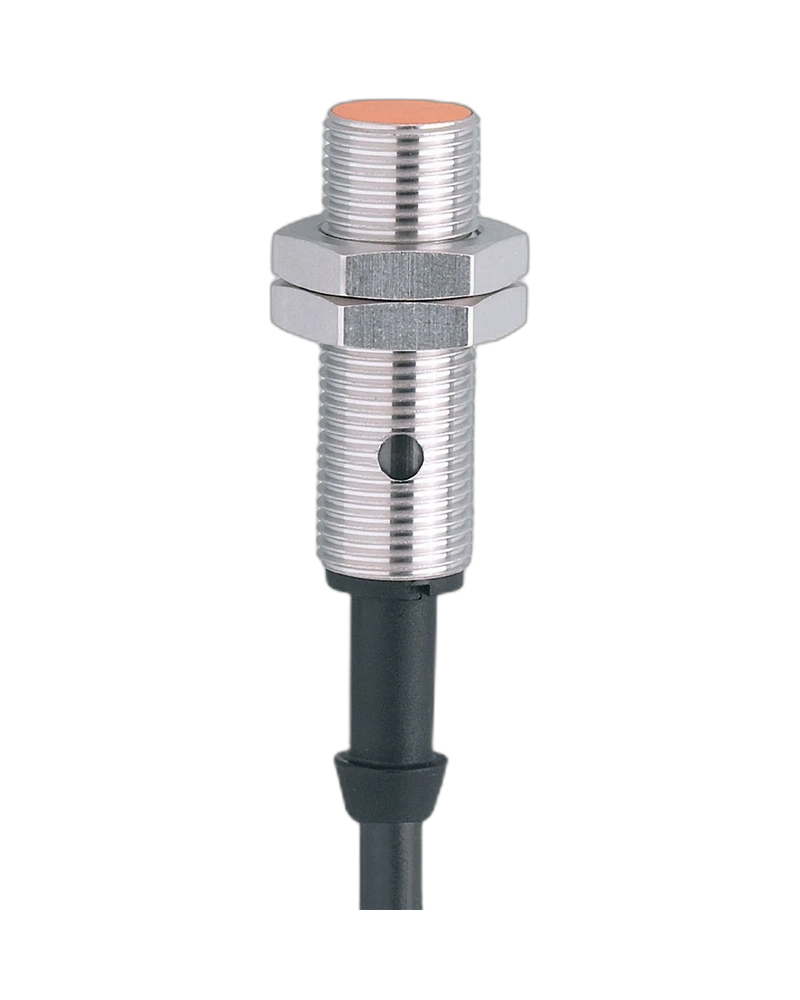

The IF5249 Inductive Sensor provides reliable 4 mm metal detection with PNP normally open output and a robust compact M12 housing. It is designed for high-speed sensing in demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF5249 Inductive Sensor is designed for accurate non-contact metal detection in industrial machinery. Its 4 mm sensing range provides dependable object and position detection for automated processes.
The sensor supports a switching frequency of up to 1500 Hz, enabling fast detection in high-speed production applications. Its compact metal housing is suitable for installations where space is limited.
With IP67 protection, reverse polarity protection, short-circuit protection, and overload protection, the sensor provides reliable operation in demanding environments. It can be integrated easily with PLCs and industrial automation systems.
Ideal for factory automation, conveyor systems, machine tools, packaging machinery, assembly lines, material handling, and automated production equipment.
| Specification | Details |
|---|---|
| Product Type | Inductive Sensor |
| Model | IF5249 |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Operating Voltage | 10–36 V DC |
| Switching Frequency | 1500 Hz |
| Protection Rating | IP67 |
| Housing | M12 x 1 / L = 35 mm |
| Mounting | Non-flush |
| Connection | 2 m PVC Cable |
