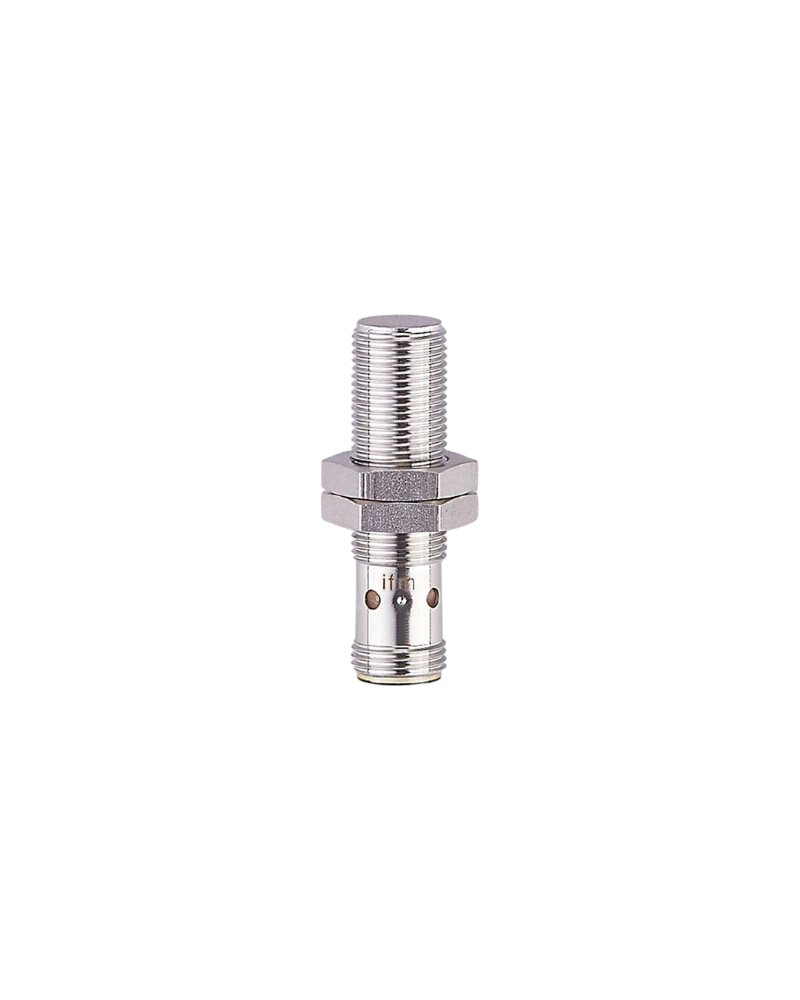

The IF509A full-metal inductive sensor provides dependable 4 mm metal detection, high mechanical strength, and increased sensing capability for demanding industrial and hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IF509A Inductive Full-Metal Sensor is designed for reliable metal detection in demanding Industrial Automation UAE applications. Its full-metal housing and heavy-duty sensing face provide enhanced durability for industrial machinery.
The sensor offers an increased sensing range, robust mechanical construction, and protection against demanding industrial conditions. It is suitable for machinery where reliable detection, impact resistance, and long-term performance are important.
Suitable for industrial automation, machine tools, factory equipment, hazardous-area applications, production machinery, conveyors, material handling systems, and demanding industrial installations.
| Specification | Details |
|---|---|
| Product Type | Inductive Full-Metal Sensor |
| Model | IF509A |
| Sensing Range | 4 mm |
| Electrical Design | PNP |
| Operating Voltage | 10–30 V DC |
| Thread | M12 x 1 |
| Housing | Full Metal |
| Protection Rating | IP67 |
| Pressure Resistance | 100 bar / 10 MPa |
| Feature | Increased Sensing Range |
| Contacts | Gold-Plated |
| Application | Hazardous / Industrial Areas |
