The IF505A full-metal inductive sensor provides 6 mm sensing with robust construction, IP67 protection, and hazardous-area suitability for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

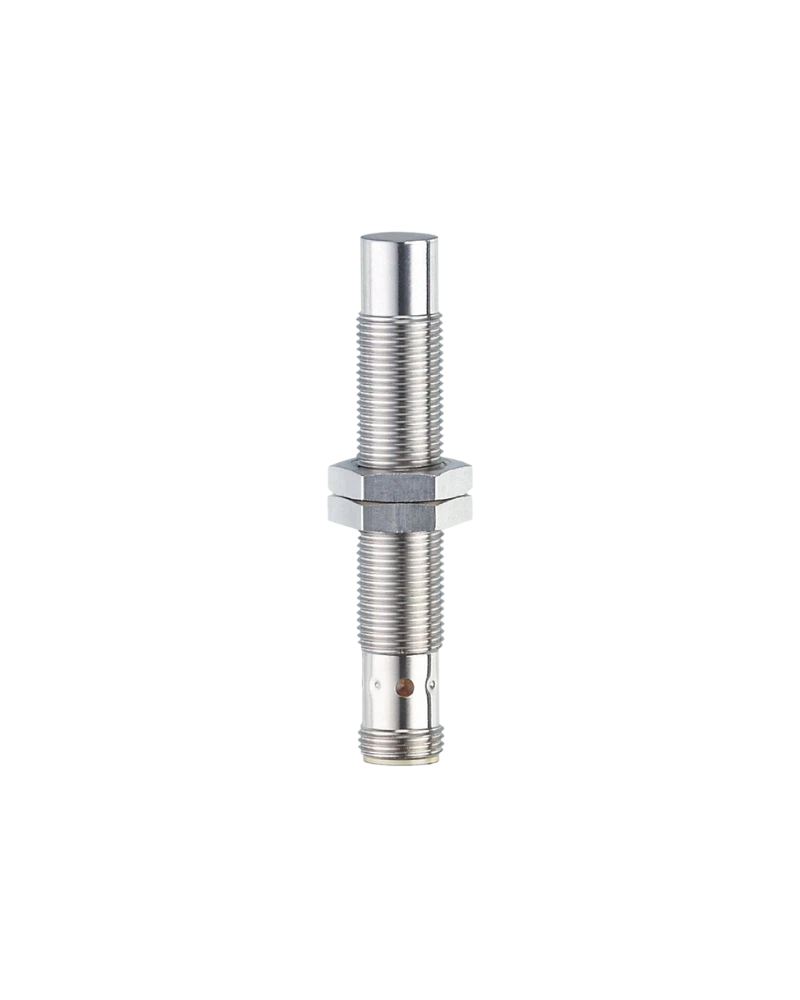

The IF505A Inductive Full-Metal Sensor is designed for reliable metal detection in demanding Industrial Automation UAE environments. Its full-metal construction provides enhanced mechanical durability for industrial machinery and hazardous-area applications.
With a 6 mm sensing range, PNP output, M12 connector, and high protection rating, the sensor supports dependable operation in challenging environments. Its design is suitable for applications where durability and reliable detection are critical.
Suitable for industrial automation, machine building, factory equipment, hazardous-area applications, conveyors, material handling, production machinery, and industrial position detection.
| Specification | Details |
|---|---|
| Product Type | Inductive Full-Metal Sensor |
| Model | IF505A |
| Sensing Range | 6 mm |
| Electrical Design | PNP DC |
| Output Function | Normally Open |
| Operating Voltage | 10–30 V DC |
| Thread | M12 x 1 |
| Length | 70 mm |
| Protection Rating | IP67 |
| Switching Frequency | 500 Hz |
| Connection | M12, A-coded |
| Temperature Range | -40 to 60 °C |
