IF0295 – IF-2002-ABOW is a reliable inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation applications. With a 2 mm sensing range, M12 x 1 flush-mountable design, 20–250 V AC operating voltage, normally open output, IP67 protection, and a 2 m PVC cable, it is suitable for machine position detection, object presence monitoring, and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

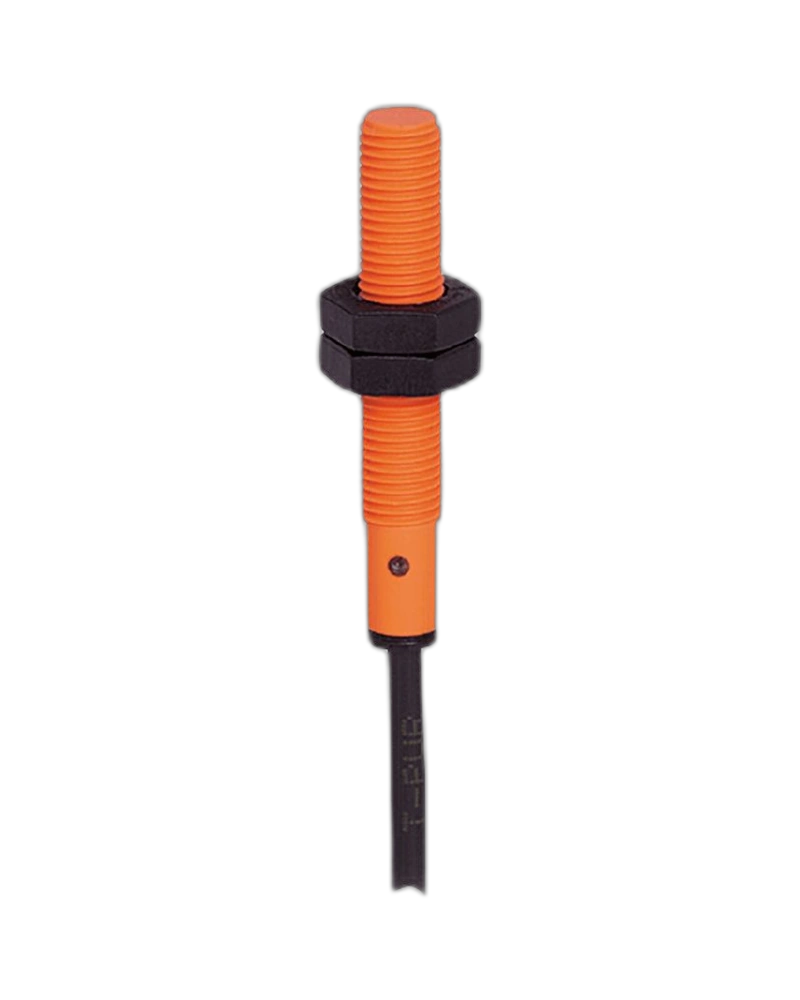

IF0295 – IF-2002-ABOW Inductive Sensor
PRODUCT INTRODUCTION
The IF0295 – IF-2002-ABOW is a compact and reliable inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation applications.
KEY FEATURES
• Inductive proximity sensor for reliable non-contact metal detection
• 2 mm nominal sensing range
• M12 x 1 threaded design
• Flush-mountable construction
• Normally open (NO) output
• 20–250 V AC operating voltage
• IP67 protection rating
APPLICATIONS
• Industrial machine automation
• Factory automation systems
• Metal object detection
• Machine position monitoring
• Production line automation
APPLICATION PERFORMANCE
The IF0295 provides reliable detection of suitable metallic targets and is designed for repeated sensing operations in automated machinery. Its IP67 protection rating and wide operating temperature range make it suitable for demanding industrial environments.
INDUSTRIAL AUTOMATION APPLICATIONS IN UAE
The IF0295 is suitable for Industrial Automation UAE applications, including machine positioning, object presence detection, production monitoring, and automated process control.
INDUSTRIAL SENSORS AND PROXIMITY DETECTION
The sensor is suitable for Industrial Sensors, Proximity Sensors, Industrial Sensors Supplier UAE, Proximity Sensors Supplier UAE, and Sensor Supplier UAE requirements.
INDUSTRIAL EQUIPMENT AND ELECTRICAL APPLICATIONS
The IF0295 can be integrated into industrial equipment, industrial electrical equipment, production machinery, and factory automation systems.
AUTOMATION PRODUCTS AND FACTORY AUTOMATION
The sensor can be incorporated into Industrial Automation Components UAE, Factory Automation Components, and Industrial Automation Equipment UAE applications.
WHY CHOOSE IF0295 – IF-2002-ABOW?
• Reliable non-contact metal detection
• Compact M12 x 1 design
• 2 mm sensing range
• Flush-mountable construction
• IP67 protection
• Suitable for industrial automation applications
| Specification | Details |
|---|---|
| Product Code | IF0295 |
| Model | IF-2002-ABOW |
| Product Type | Inductive Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Electrical Design | AC |
| Operating Voltage | 20–250 V AC |
| Operating Frequency | 47–63 Hz |
| Output Function | Normally Open (NO) |
| Nominal Sensing Range | 2 mm |
| Real Sensing Range | 2 mm ±10% |
| Operating Distance | 0–1.6 mm |
| Installation | Flush Mountable |
| Thread Size | M12 x 1 |
| Housing Material | PBT |
| Housing Length | 71.5 mm |
| Switching Frequency | 25 Hz |
| Maximum Voltage Drop | 8.5 V |
| Minimum Load Current | 8 mA |
| Maximum Leakage Current | 2 mA |
| Continuous Switching Output Current | 200 mA |
| Short-Time Current Rating | 900 mA (20 ms / 0.5 Hz) |
| Protection Rating | IP67 |
| Operating Temperature | -25 °C to +80 °C |
| Electrical Connection | 2 m PVC Cable |
| Cable Cross Section | 2 x 0.5 mm² |
| Status Indication | Yellow LED |
| Correction Factor – Steel | 1 |
| Correction Factor – Stainless Steel | 0.7 |
| Correction Factor – Brass | 0.4 |
| Correction Factor – Aluminium | 0.3 |
| Correction Factor – Copper | 0.2 |
| Protection Class | II |
